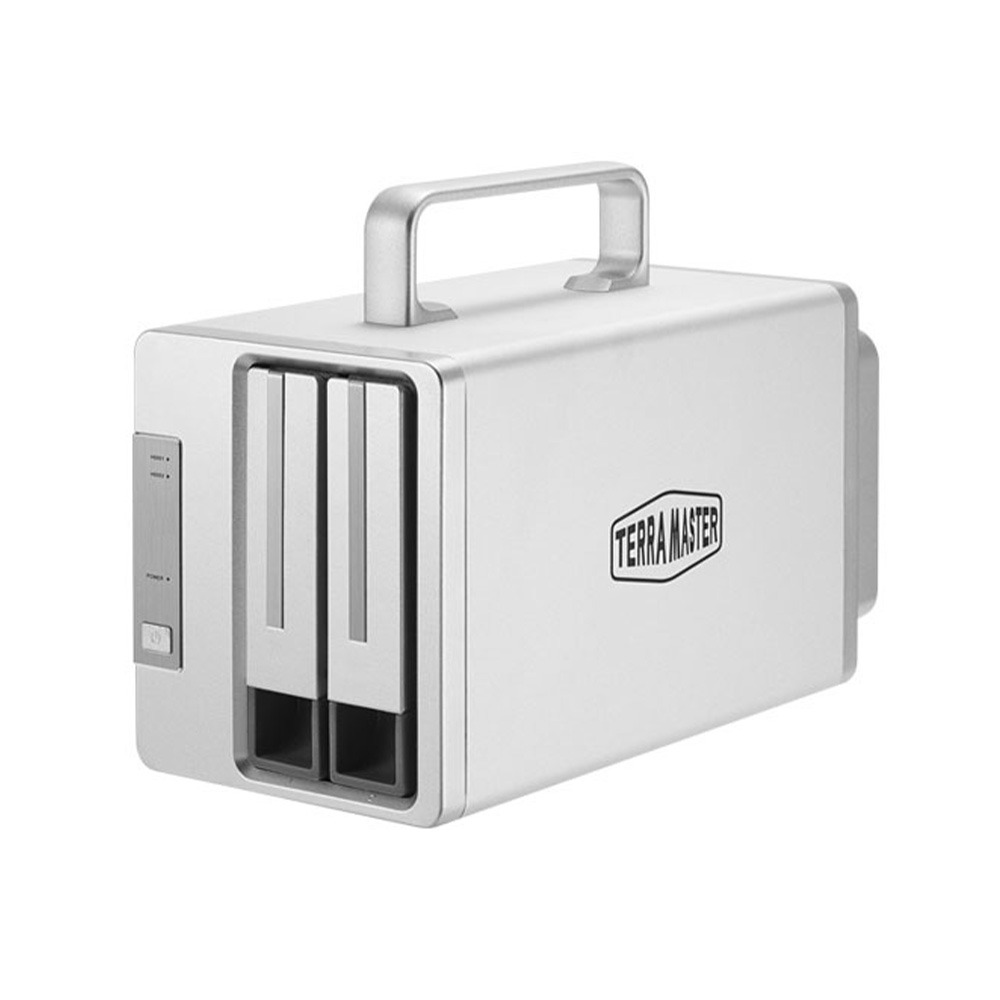

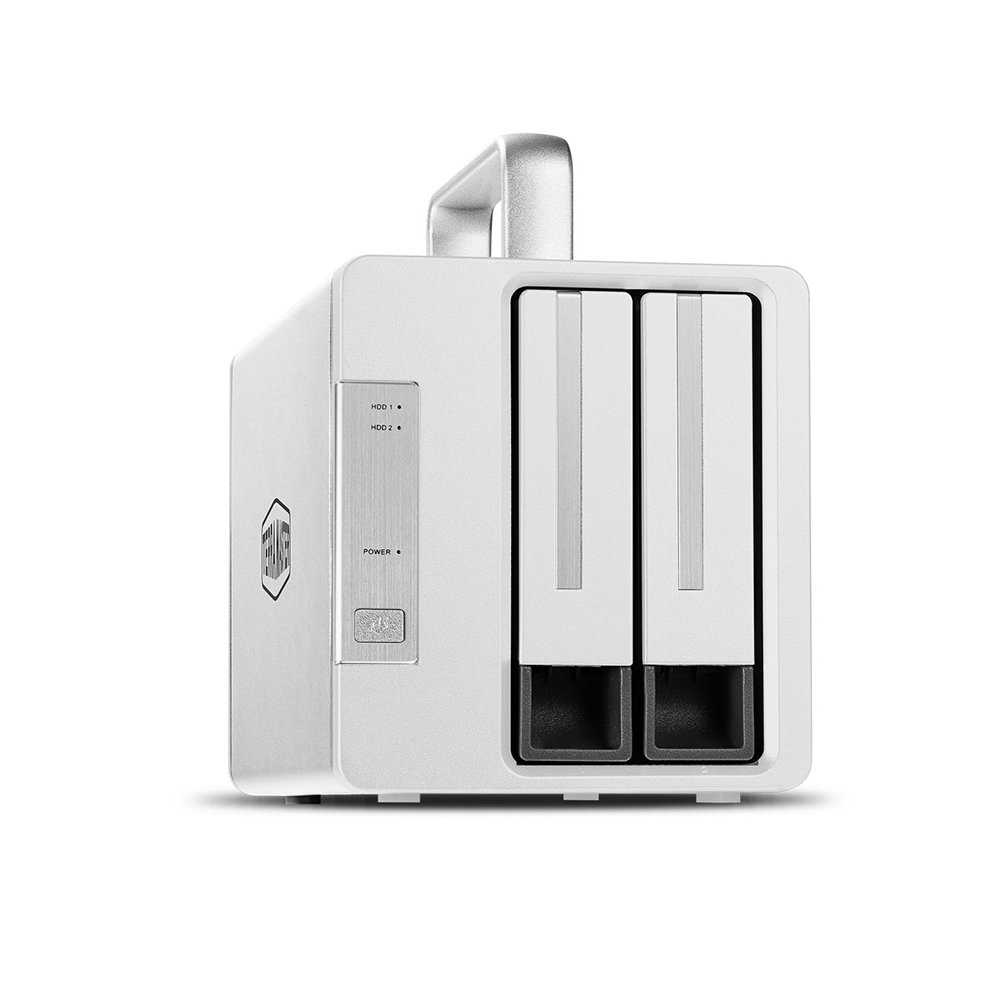

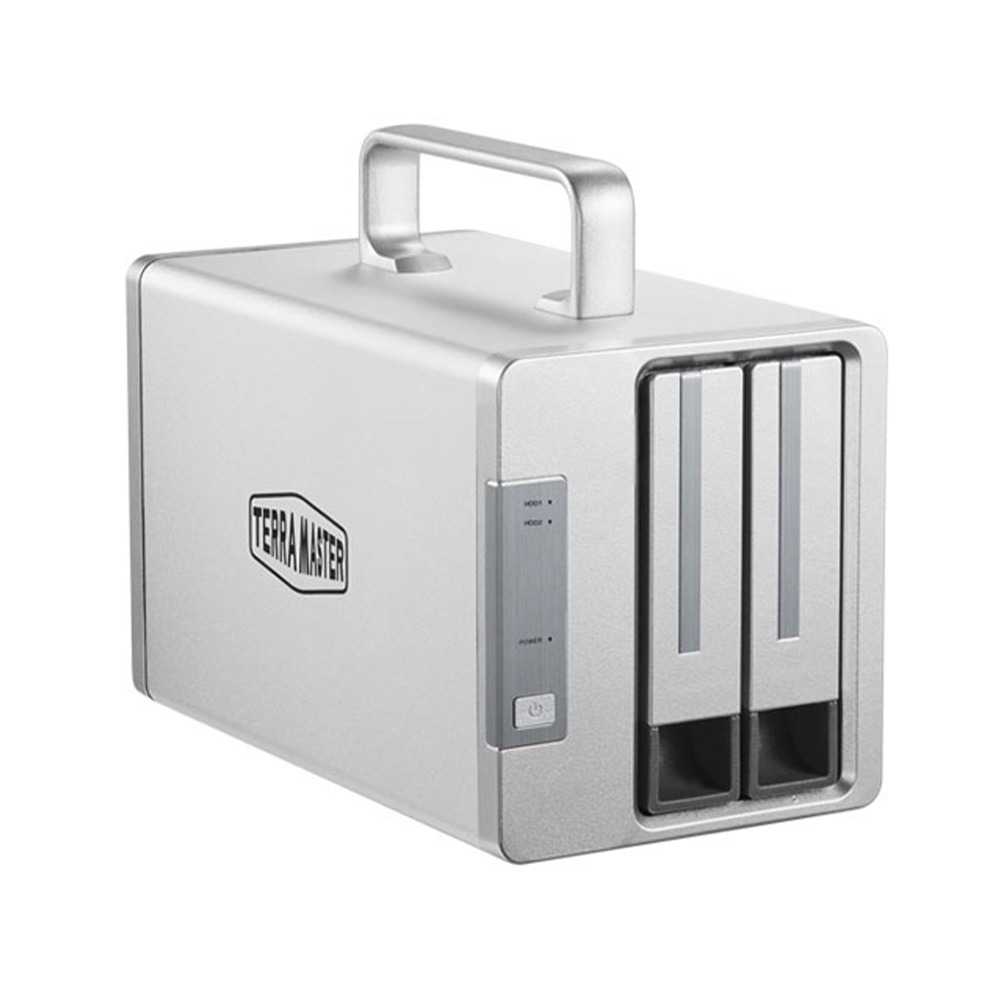

| Model: Terramaster TD2 ThunderBolt 3
Với Terramaster TD2 ThunderBolt 3 - Gia tăng dung lượng lưu trữ RAID tốc độ cao lên đến 40TB vào thiết lập chỉnh sửa video chuyên nghiệp của bạn.
Được thiết kế cho việc chỉnh sửa video và streaming video 4K, TD2 ThunderBolt 3 trang bị 2 khay ổ cứng với chế độ RAID tích hợp giúp bạn nhanh chóng có được tốc độ lên đến 760MB/s và hỗ trợ mở rộng giải pháp lưu trữ lên đến hàng trăm Terabytes một cách dễ dàng với kết nối Daisy Chain lên đến 6 thiết bị cùng lúc.
- Portable design for professionals especially those with strict speed and safety requirements, including 4K video editing.
- Two 40Gbps Thunderbolt 3 interfaces, reading speeds up to 760MB/s (with SSHD in RAID 0). Compatible with 3.5" and 2.5" SATA HDD, 2.5" SATA SSD.
- Hardware RAID: RAID0, RAID1, JBOD, SINGLE; Support up to 40TB storage capacity (20TB x 2, in RAID 0); Daisy-chain up to 6 devices;
- Capitalising on the Thunderbolt 3 and DP interfaces, the TD2 Thunderbolt 3 supports multi-screen display with up to 3 screens.
|
7.800.000 vnđ
(Hàng chính hãng, bảo hành 2 năm từ Terramaster)
|
|
|
|
|
|
| Thông số kỹ thuật |
| Manufactor: |
TERRAMASTER |
| Type: |
Box HDD/SSD |
| Disk Slot Number: |
2 |
| Compatible Disk Types: |
- HDD 3.5" SATA
- HDD 2.5" SATA
- SSD 2.5" SATA
|
| File System: |
NTFS, APFS, Mac OS, FAT32, EXT4, exFAT |
| Maximum Internal Raw Capacity: |
40TB (20TB drive x 2) (Capacity will vary along with the RAID type) |
| RAIDs Supported: |
- RAIDs Supported: SINGLE DISK, JBOD, RAID 0, RAID 1
- Hardware RAID: Yes
- RAID Auto-rebuilding: Yes
- Drive Hot Swap: Yes
- HDD Sleep: Yes
|

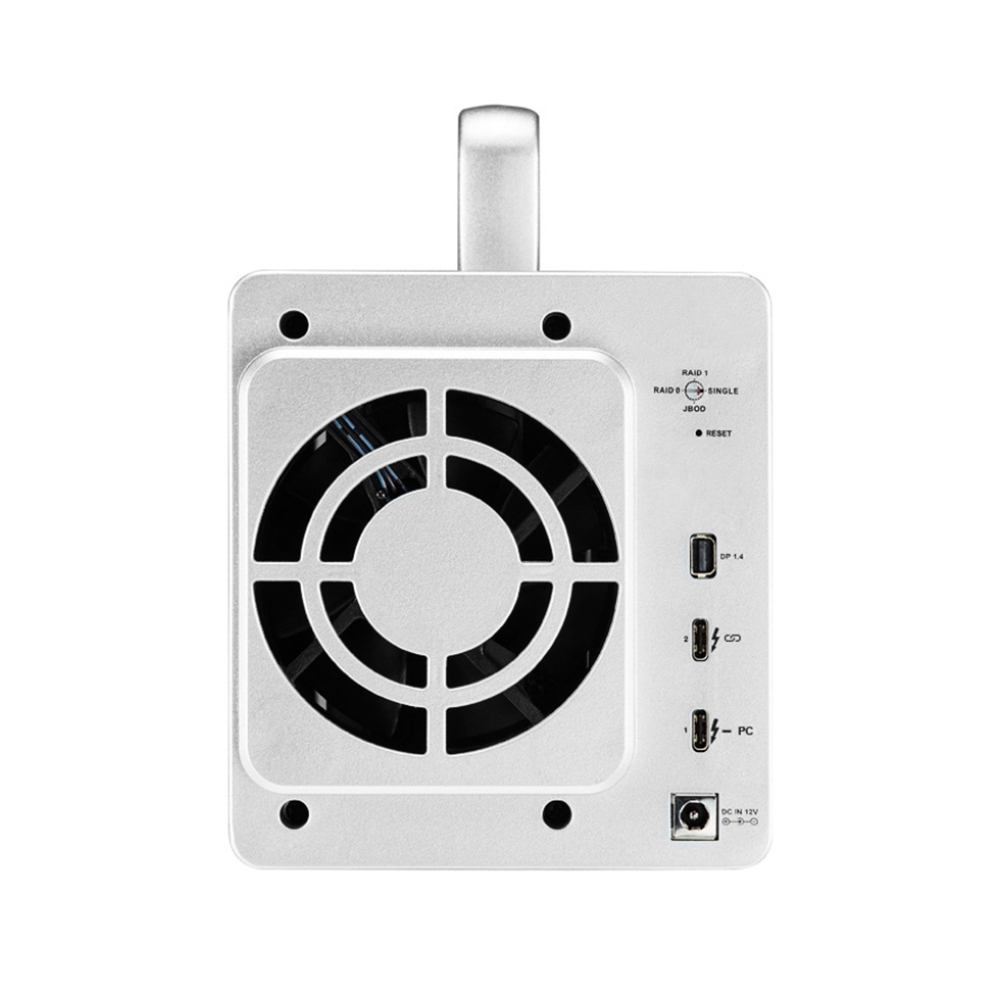

| ThunderBolt: |
2 x Thunderbolt 3 40Gb |
| DP Interface: |
1 x DP 1.4 |
| Reading/writing Speed (max.): |
- Read: 521MB /sec , (Use HDD under RAID 0 mode); Read: 810MB /sec , (Use SSD under RAID 0 mode)
- Write: 506MB /sec, (Use HDD under RAID 0 mode); Write: 806MB /sec, (Use SSD under RAID 0 mode)
|
| System fan: |
1 x Fan: 80 mm x 80 mm x 25 mm |
| Fan mode: |
Smart |
| Noise Level: |
18.6dB(A) |
| Power Supply: |
- Power Supply: 90W
- Power Socket: DC IN 12V
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 HZ, Single Phase
- Power Consumption: 65.6W (in read/write state)
|
| Environment Temperature: |
- Working Temperature: 5°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
|
| Supported OS: |
Windows OS、Mac OS、Linux |
| Certificate: |
CE, FCC, CCC, KC, RoHS compliance |
| Size: |
227 x 119 x 173 mm |
| Weight: |
1.4 Kg |
| Color: |
Silver |
| In the box: |
- 1 x Terramaster TD2 ThunderBolt 3
- 1 x Thunderbolt 3 cable (40Gbps) 0.8 Meter
- 1 x Power cord
- 1 x Power Adapter
- 1 x Screws Kit
- 1 x Quick start guide
- 1 x Limited Warranty Note
|
|
|
Video Terramaster TD2 ThunderBolt 3
|
|
|

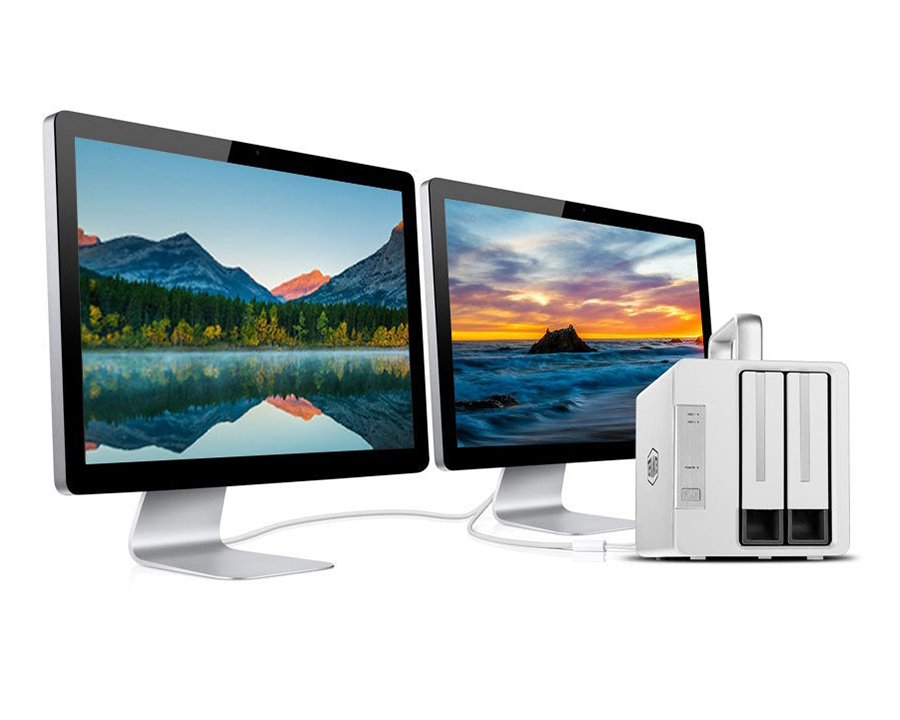

Professional 8K Display
Using DisplayPort 1.4 and Thunderbolt 3 interfaces, you can link the TD2 Thunderbolt 3 to a single 8K or dual 4K displays. The device can serve up to 3 display screens.
|
|
|

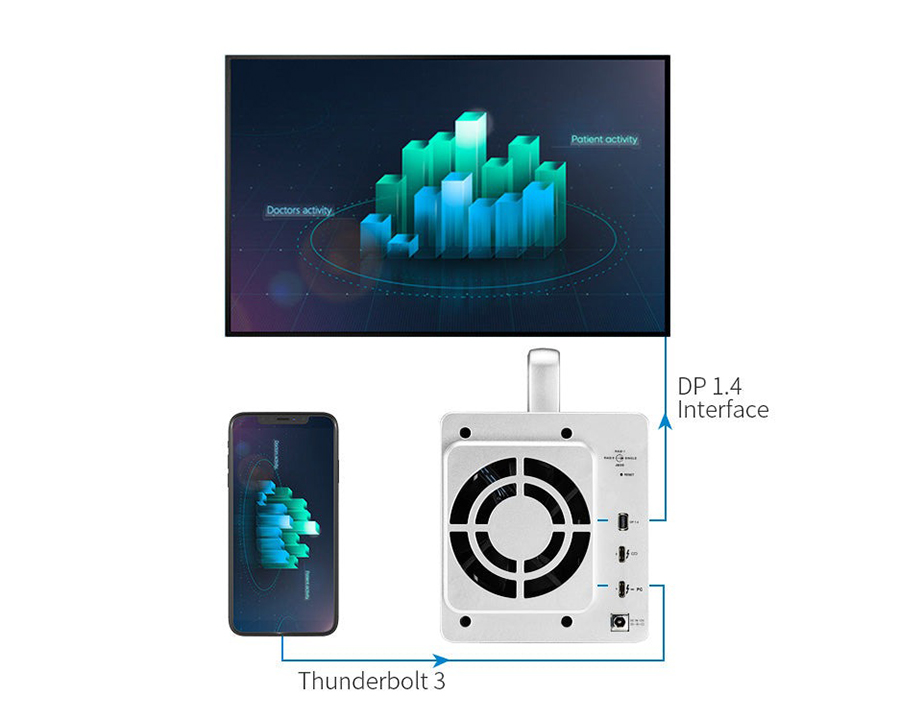

HD Projection
Using a Thunderbolt 3 cable, you can project your phone’s screen to a high-definition display. This will help you to streamline your workflow, moving seamlessly between your handset and your desktop.
|
|
|
|
|

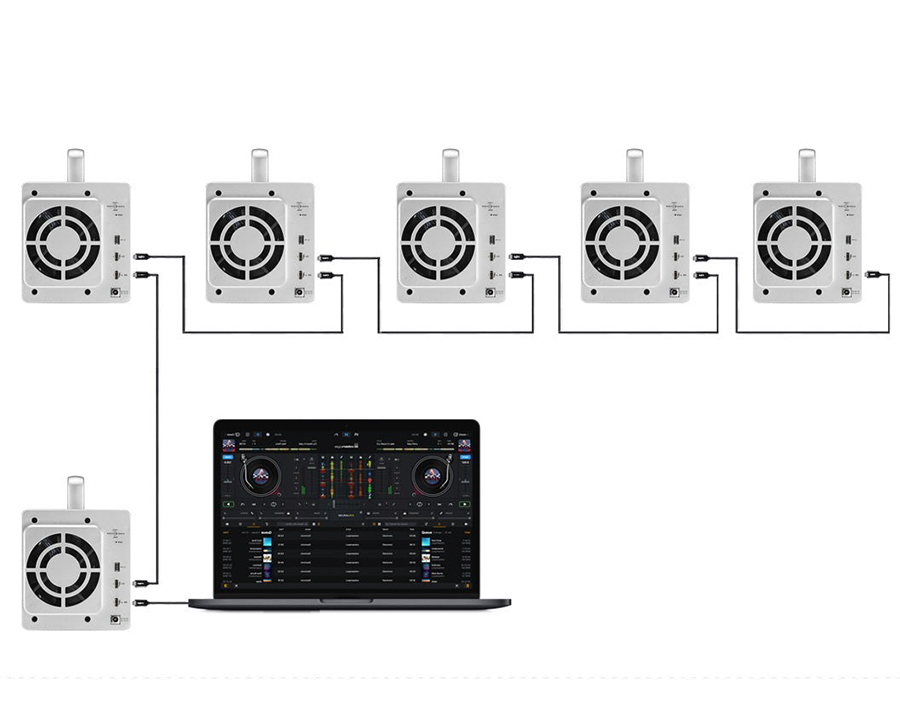

Daisy-chaining
TD2 Thunderbolt 3 supports daisy-chained connections. You can connect to 5 other Thunderbolt 3 devices via a Thunderbolt 3 interface.
|
|
|

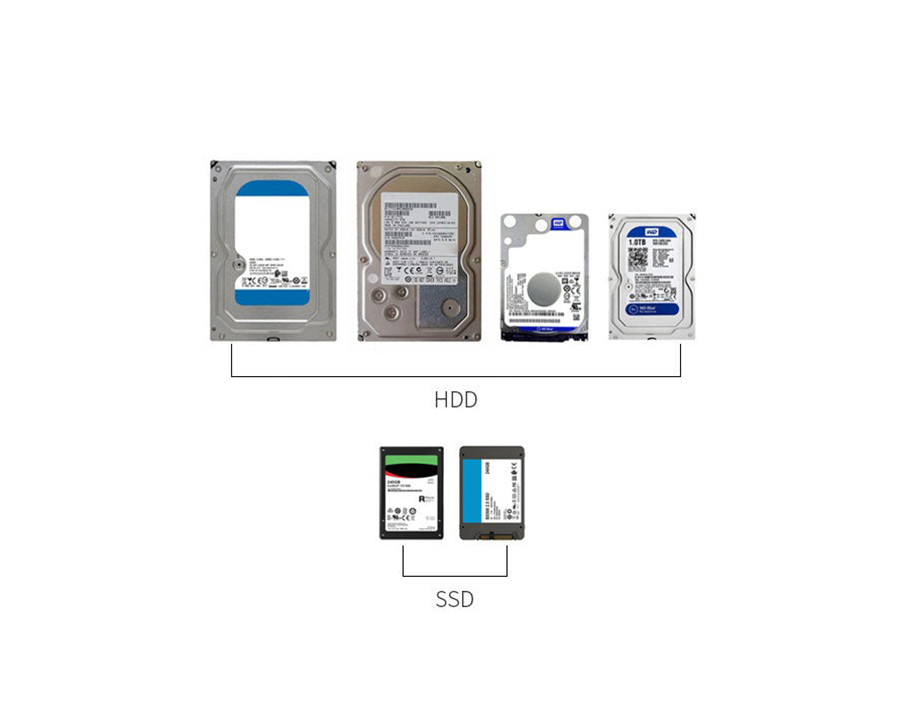

More Storage Space
TD2 Thunderbolt 3 is equipped with two SATA hard drive slots. You can install two 3.5-inch or 2.5-inch hard drives or SSDs using these slots, offering a maximum storage space of 32 TB.
|
|
|
|
|
Hardware RAID Controller
TD2 Thunderbolt 3 is equipped with a hardware RAID controller. Use this to switch between RAID 0, RAID 1, JBOD, and Single freely. The device also supports automatic rebuilding of RAID 1.
|
|
|
Optimized for Video Professionals
With aluminum casing and a built-in, temperature-controlled smart fan, TD2 Thunderbolt 3 ensures total heat dissipation. Therefore, it maintains an optimal working performance – all the time.
|
|
|
|
|

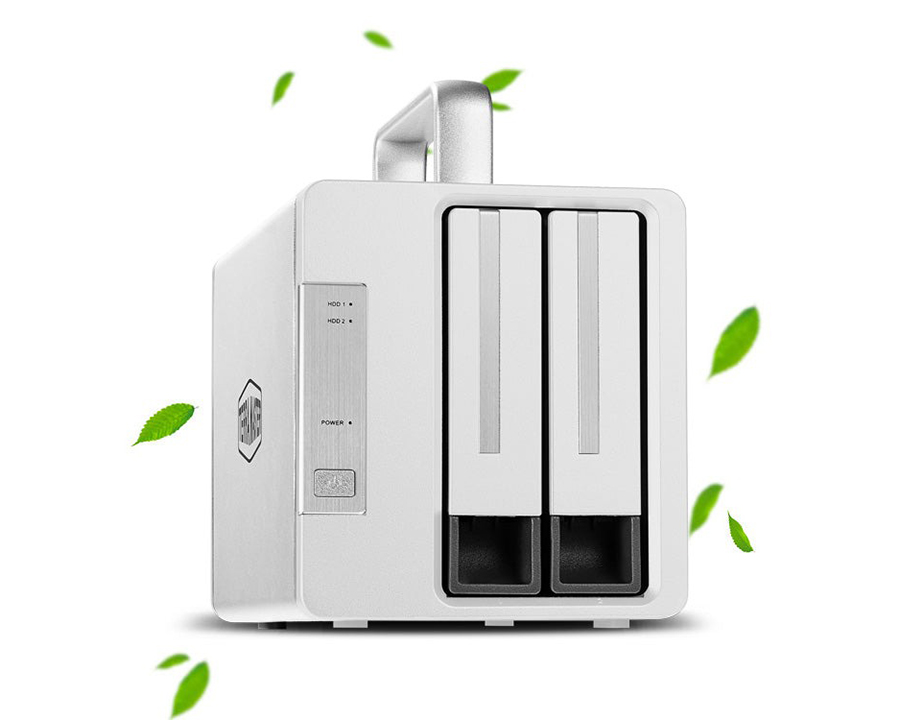

Intelligent, Energy-saving Design
With its automatic power-on design, TD2 Thunderbolt 3 benefits from its intelligent approach to energy conservation. Once your computer is powered off or set to sleep, TD2 Thunderbolt 3 will automatically enter sleep mode. When you switch your computer back on, the device will exist sleep mode. During sleep, only the hard drive and the fan stop running, while other functions operate normally. In case of an accidental power outage, TD2 Thunderbolt 3 will power on automatically when the power supply is reconnected.
|
|
|
|
|
|
