Terramaster D6-320

Terramaster D6-320 là một trong những giải pháp lưu trữ mạnh mẽ từ hãng Terramaster, được xây dựng dựa trên giao thức USB 3.2 Gen2 giúp bạn có được tốc độ cực nhanh lên đến 521MB/s với 1 x SSD hoặc lên đến 1030MB/s với 6 x HDD khi được lắp đặt.

Đặc biệt, Terramaster D6-320 được trang bị lên đến 6 Bay ổ cứng dưới chế độ SINGLE DISK giúp bạn có được dung lượng lưu trữ khổng lồ lên đến 132TB (6 x HDD 22TB), hỗ trợ tính năng Hot Swap thông minh giúp bạn có thể tháo lắp nóng nhanh chóng để thay thế ổ cứng khi có sự cố mà không cần phải tắt nguồn giúp việc truyền dữ liệu thuận tiện và hiệu quả hơn.

• High Speed: The D6-320 hard drive enclosure adopts USB 3.2 Gen2 protocol for high-speed data transmission up to 10Gbps. With 6 hard drives installed, the read/write speed can reach up to 1,030MB/s (SATA III HDD 8TB x 6). With one hard disk installed, the read speed can reach 510MB/s (SATA III HDD 1TB SSD x 1).
• Super-large Storage Space: The D6-320 HDD storage enclosure can support up to six 3.5" and 2.5" SATA HDD, as well as 2.5" SATA SSD, with a maximum capacity of 22TB per drive, providing users with up to 132TB (22TB x 6) of storage space. Note that the D6-320 does not support arrays and only works with individual disks.
• Plug and Play, Highly Compatible: The D6-320 das storage is a plug-and-play device that doesn't require drivers to work. It is highly compatible with MAC, Windows, and Linux operating systems. It has a USB Type-C interface and comes with a USB type C-type C cable. The device is compatible with various computer interfaces, including USB 3.0, USB 3.1, USB 3.2, Thunderbolt 3, and Thunderbolt 4.
• Hot Swappable: The D6-320 USB enclosure supports hot swapping, which allows you to replace the hard disk without having to power off the device. This feature makes data transfer more convenient and efficient.
• Better Heat Dissipation: The D6-320 USB storage has an intelligent temperature-controlled and low-noise fan that automatically adjusts its speed based on the temperature of the hard disk. This feature ensures that the hard disk operates at its best temperature and provides better heat dissipation.
• Expansion of NAS Storage Space：The D6-320 DAS storage is compatible with TerraMaster NAS via USB interface with proper adaptation. Users can expand the NAS storage space by creating arrays and storage pools on D6-320 through TerraMaster TOS. Note: this feature requires TerraMaster NAS with TOS 5.1 or later version.

8.950.000 vnđ

• HDD 3.5" SATA
• HDD 2.5" SATA
• SSD 2.5" SATA

• RAIDs Supported: SINGLE DISK
• Hardware RAID: No
• Drive Hot Swap: Yes
• HDD Sleep: Yes

• Read：520MB/s ( SSD* 1 ); Read：1016MB/s ( SSD* 6 )
• Write：500MB/s ( SSD*1 ); Write：986MB/s ( SSD*6 )

• Power Supply: 120W
• AC Input Voltage: 100V to 240V AC
• Current Frequency: 50/60 HZ, Single Phase
• Power Consumption: 20W (Access)

• Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
• Relative Humidity: 5% ~ 95% RH

• 1 x Terramaster D6-320
• 1 x USB Cable C to Type-C (10Gb) (0.8m)
• 1 x USB Cable A to Type-C (10Gb) (0.8m)
• 1 x Power Adapter
• 1 x Screws Kit
• 1 x Quick start guide
• 1 x Limited Warranty Note

High Speed

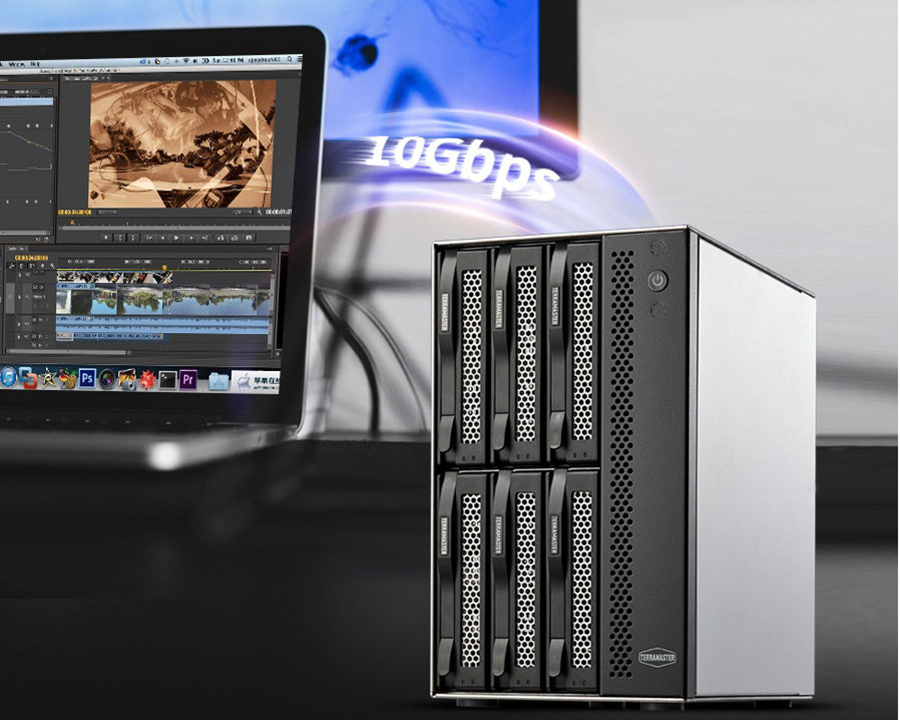

With adoption of the USB3.2 Gen2 protocol, D6-320 provides a 10Gbps data transmission bandwidth, with the actual read/write speed up to 1,016MB/s when 6 hard drives are installed (WD Red 8TB x 6 simultaneously read/write); with only one hard disk installed, the read speed could reach 510MB/s (WD Red 1TB SSD x 1).

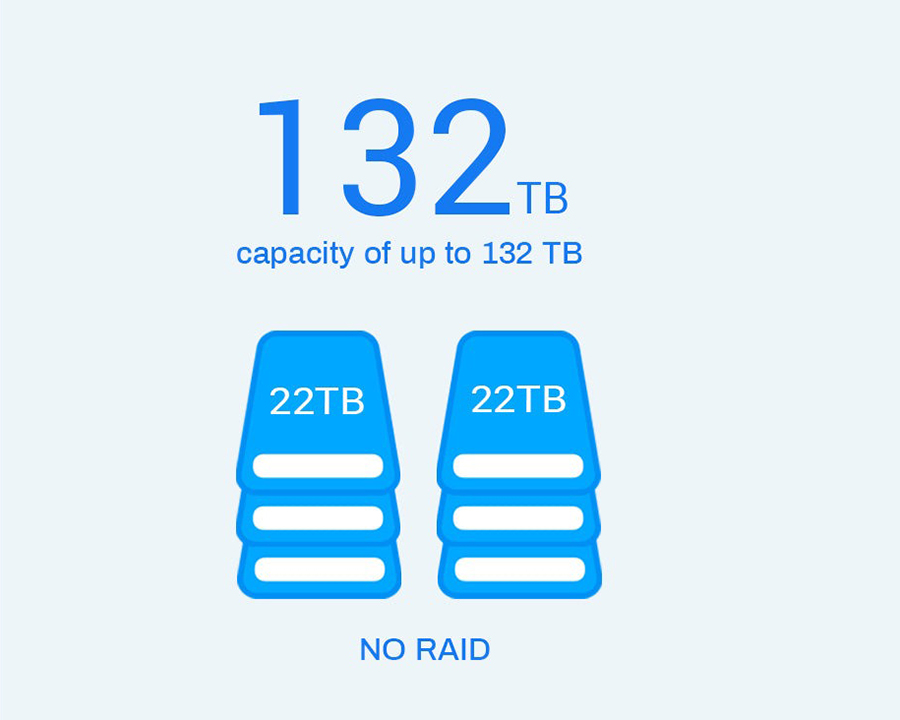

Super-large Storage Space

D6-320 supports up to 6 hard drives and a maximum drive capacity of 22TB (the compatibility with larger hard drives not verified yet), providing users with a storage space up to 132TB (22TB x 6). Remark: D6-320 does not have the function of array, and only supports single-disk working mode. To create an array, you need to use a third-party soft array management tool.

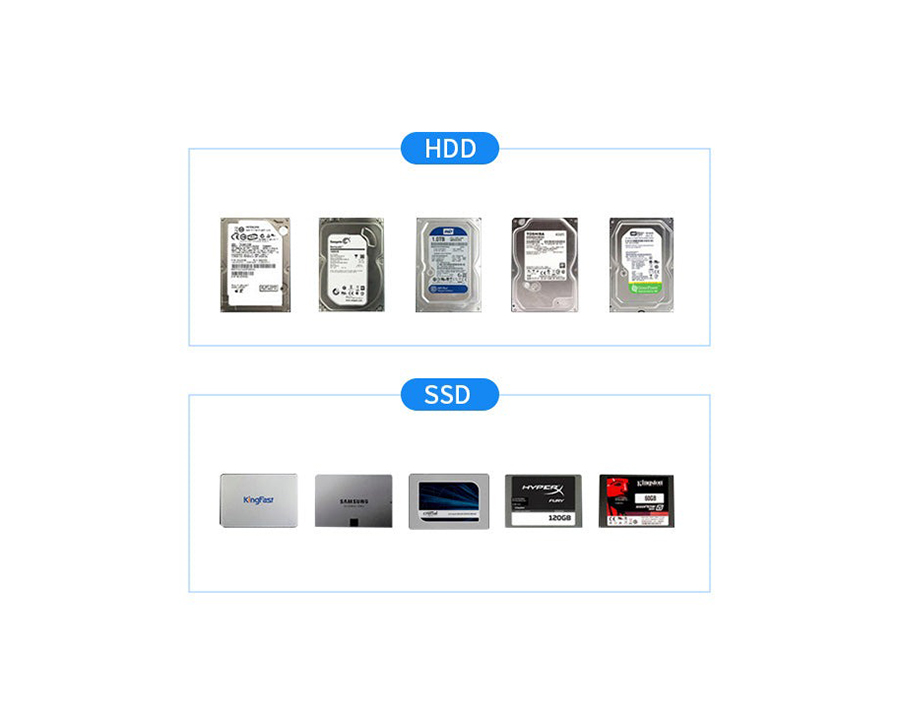

Compatible with hard disks in different kinds

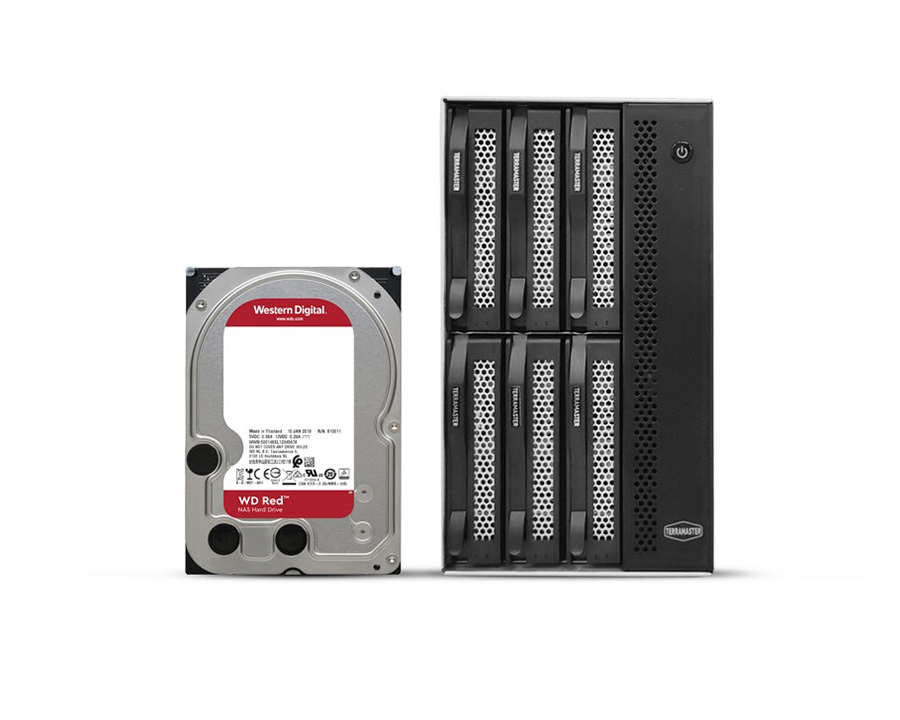

D6-320 is compatible with various hard disks, such as 3.5-inch and 2.5-inch SATA hard disks, and 2.5-inch SATA SSD. Remark: using incompatible hard disk may cause your device disconnected, with low speed and failure in hard disk recognition. Before you purchase, please be sure to check the compatibility list of TerraMaster hard disks.

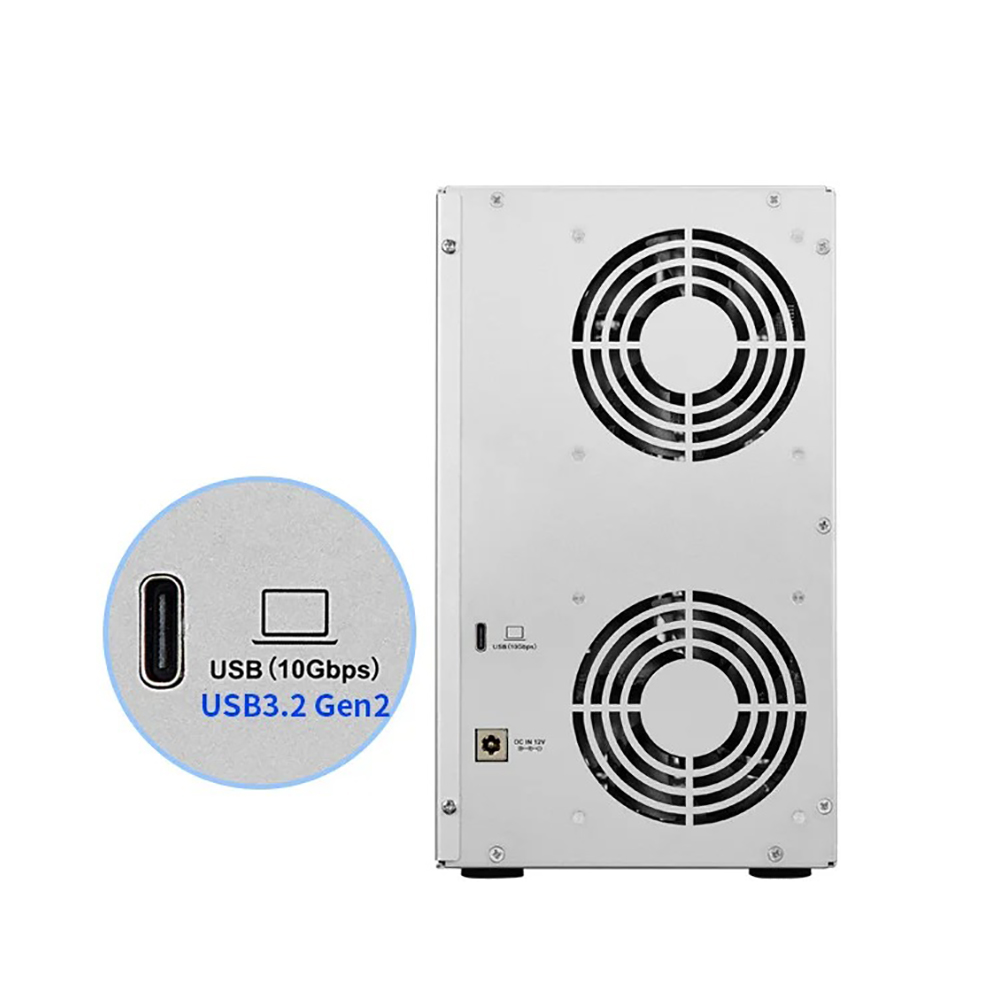

Highly Compatible Interface

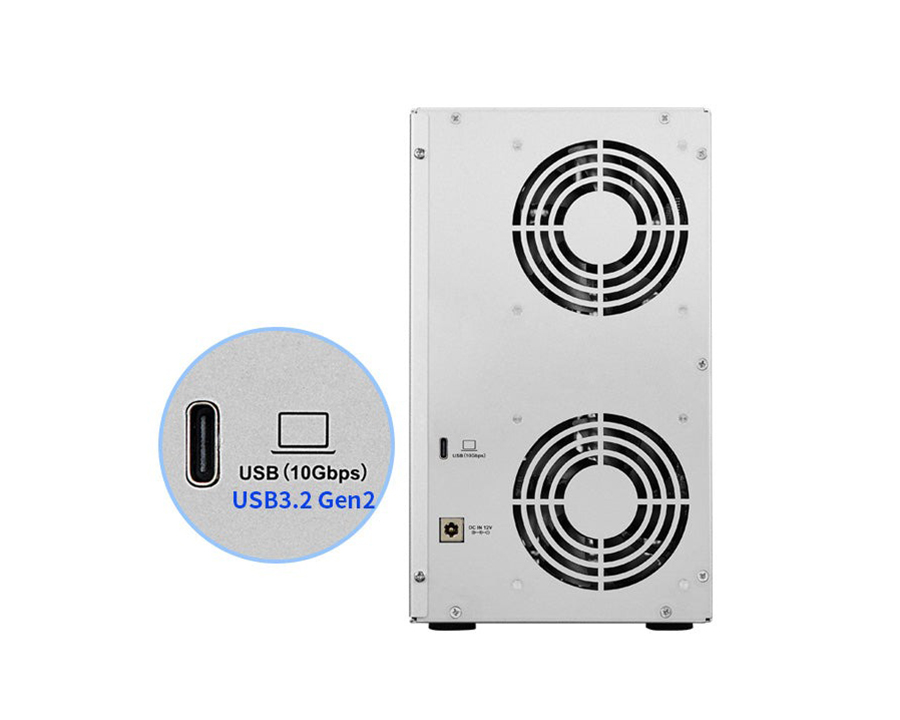

D6-320 is equipped with a USB Type-C interface and a USB typeC-type C cable (0.8 meter in length), and could be compatible with a variety of computer interfaces: USB 3.0/USB 3.1/USB 3.2/Thunderbolt 3/Thunderbolt 4 .

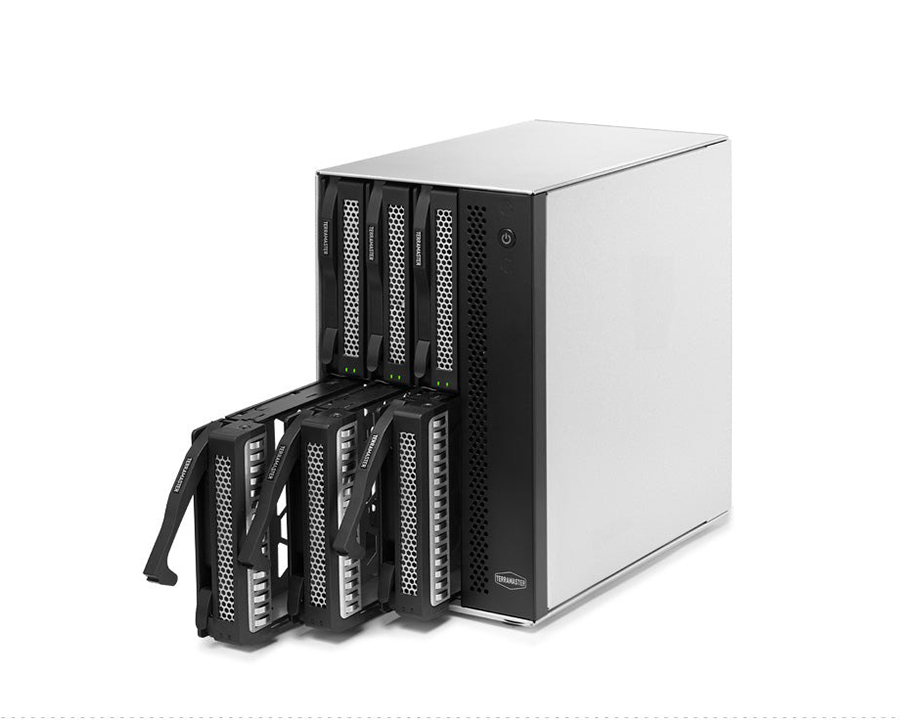

Hot Swap

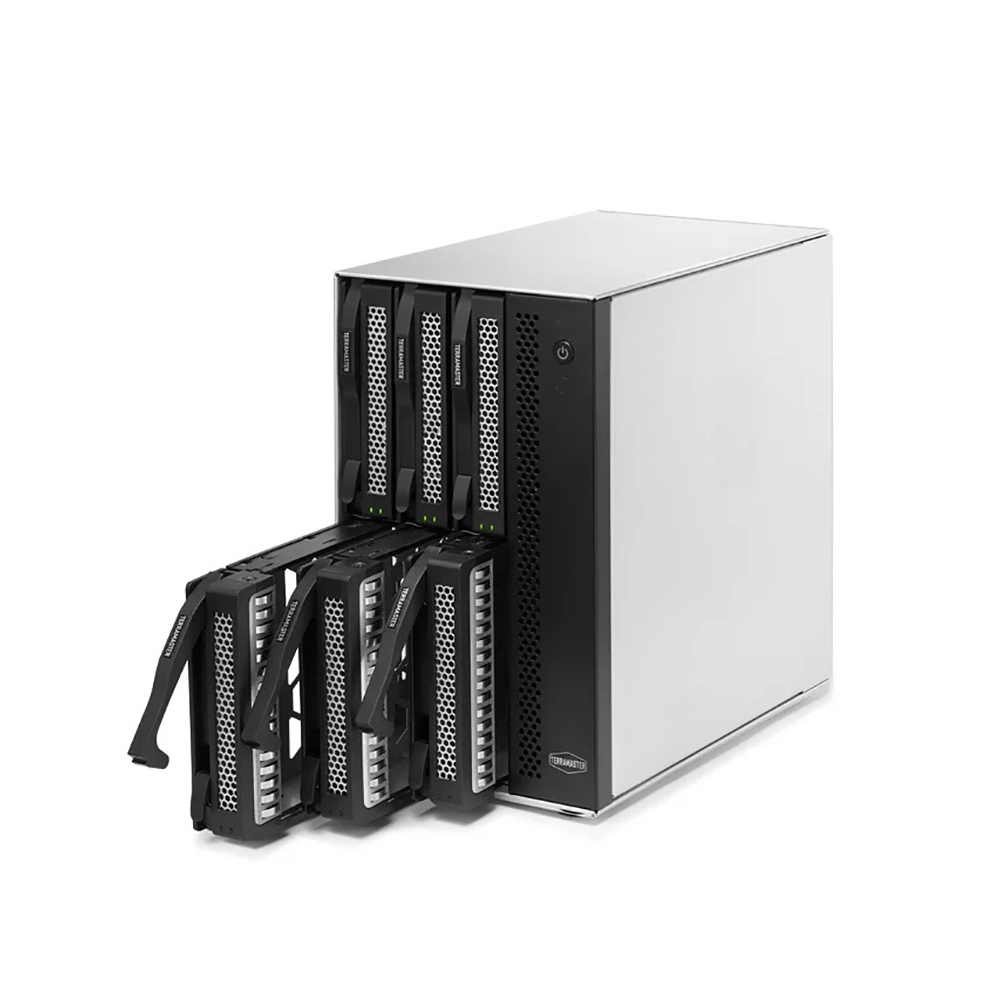

D6-320 supports hot swapping. You can replace the hard disk when the device is powered on, making data transfer more convenient.

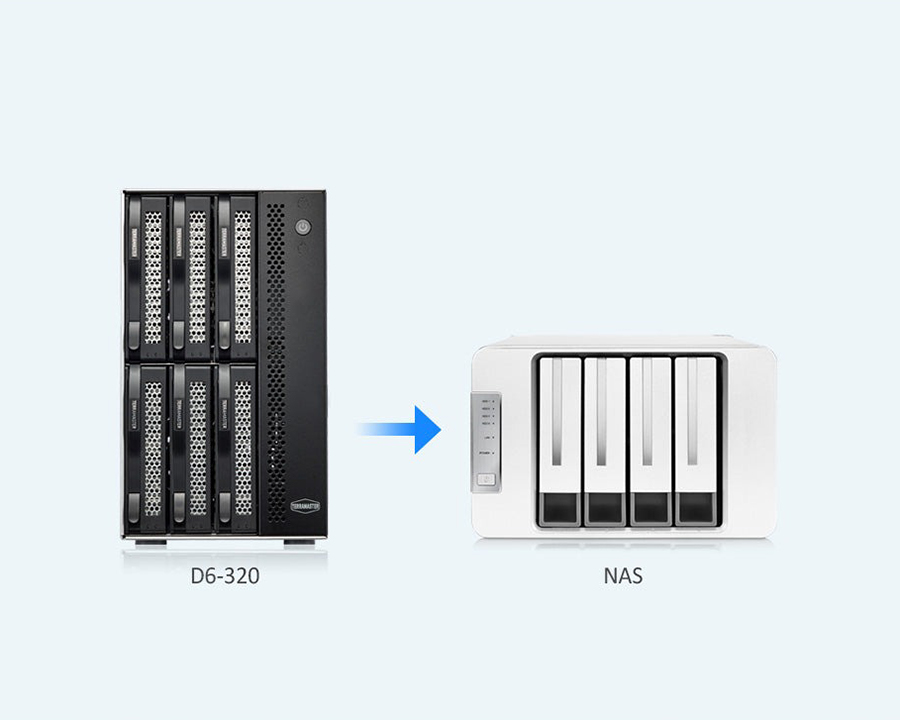

Expansion of NAS Storage Space

D6-320 can be connected to the USB interface of TerraMaster NAS after special adaptation and adjustment. Creating arrays and storage pools on D6-320 with TerraMaster TOS could expand the storage space of NAS. Remark: this function works only on TerraMaster NAS running TOS 5.1 or above.

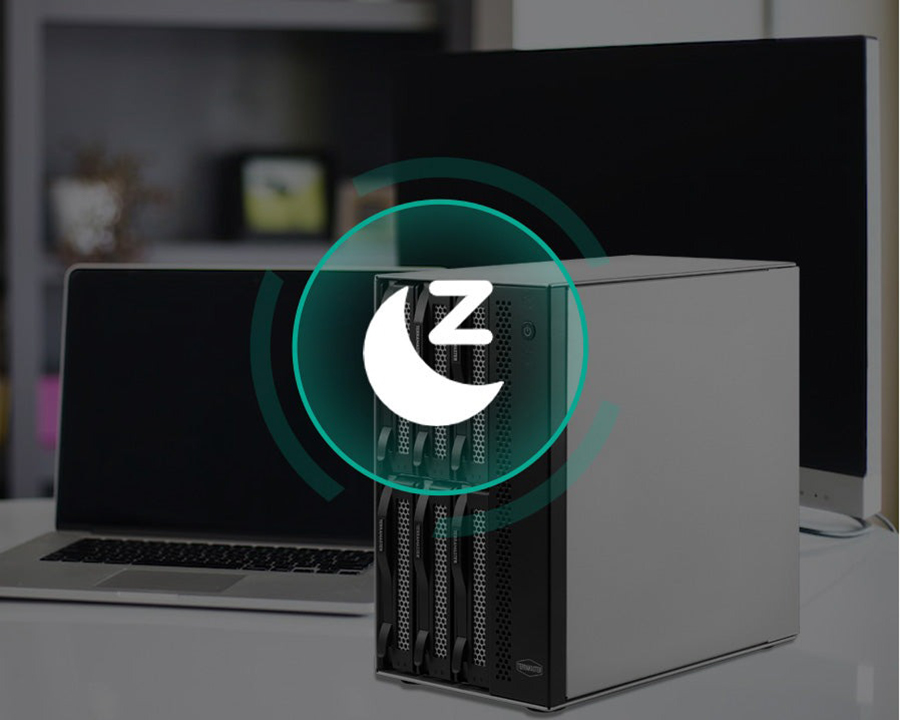

Intelligent Disk Sleep

D6-320 supports the sleep function, which can follow the computer OS to sleep, effectively reducing the working duration and power consumption of the hard disk, and extending its service life.

Safer

To prevent equipment and hard disk from being damaged by use of an improper power supply, D6-320 adopts the power supply protection. In case of an improper power supply connected, the device will enable automatic protection to prevent itself and the hard disk from damage.

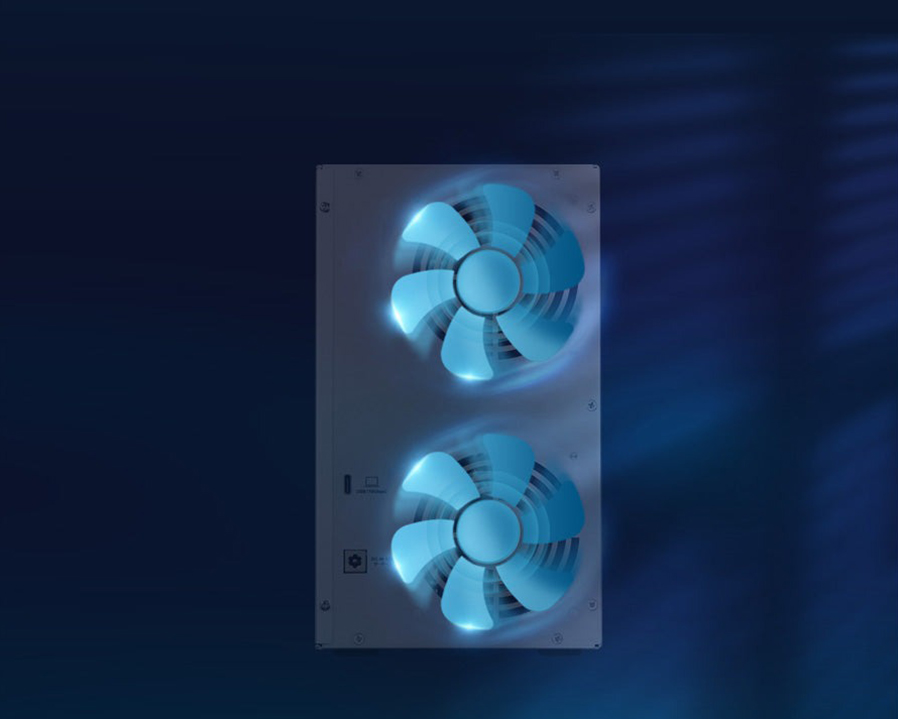

Better Heat Dissipation

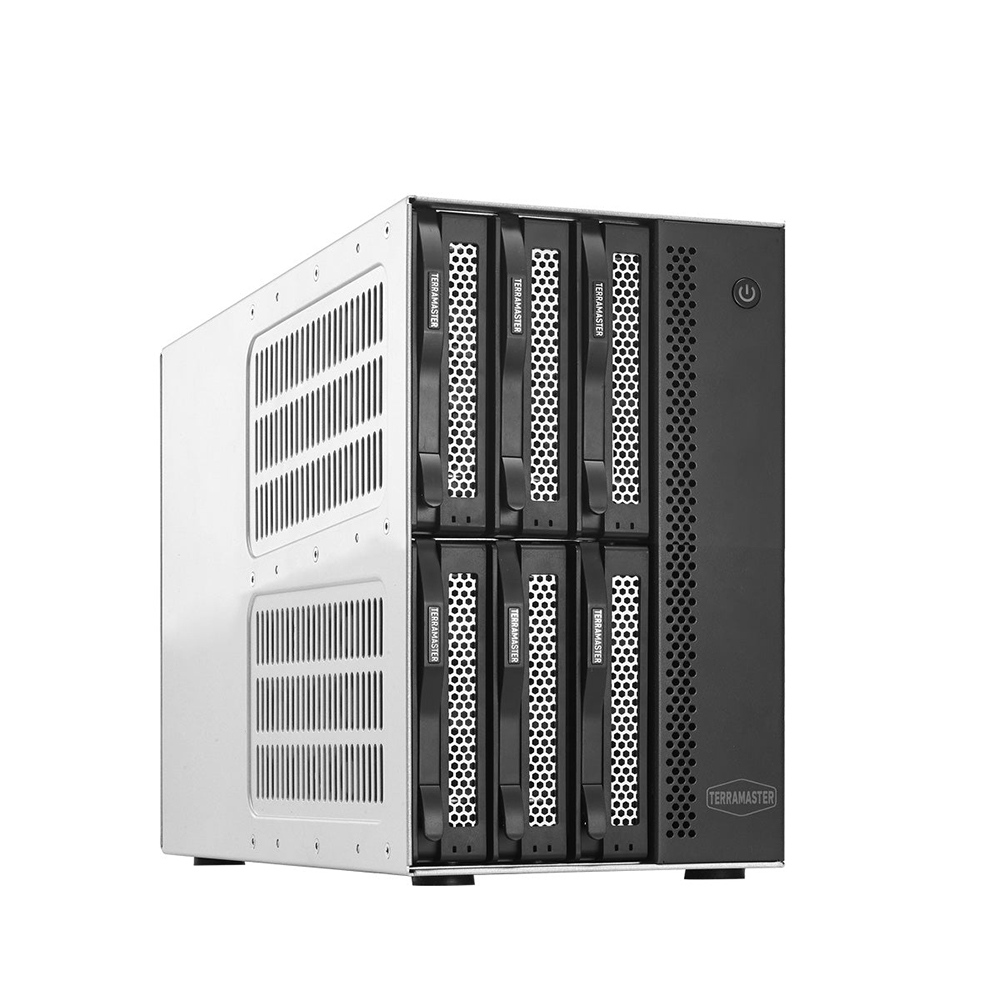

D6-320 adopts an intelligent temperature-controlled and low-noise fan that adjusts its speed automatically based on the temperature of the hard disk to ensure the hard disk to work at the best operating temperature. Furthermore, the internal structure of the device is specially optimized, which not only effectively increases the internal air pressure and reduces the working temperature of the hard disk, but also greatly reduces the resonance between device components and the hard disk. With this feature, D6-320 can maintain satisfactory low noise even under a full-load working environment.

Small and Compact Design

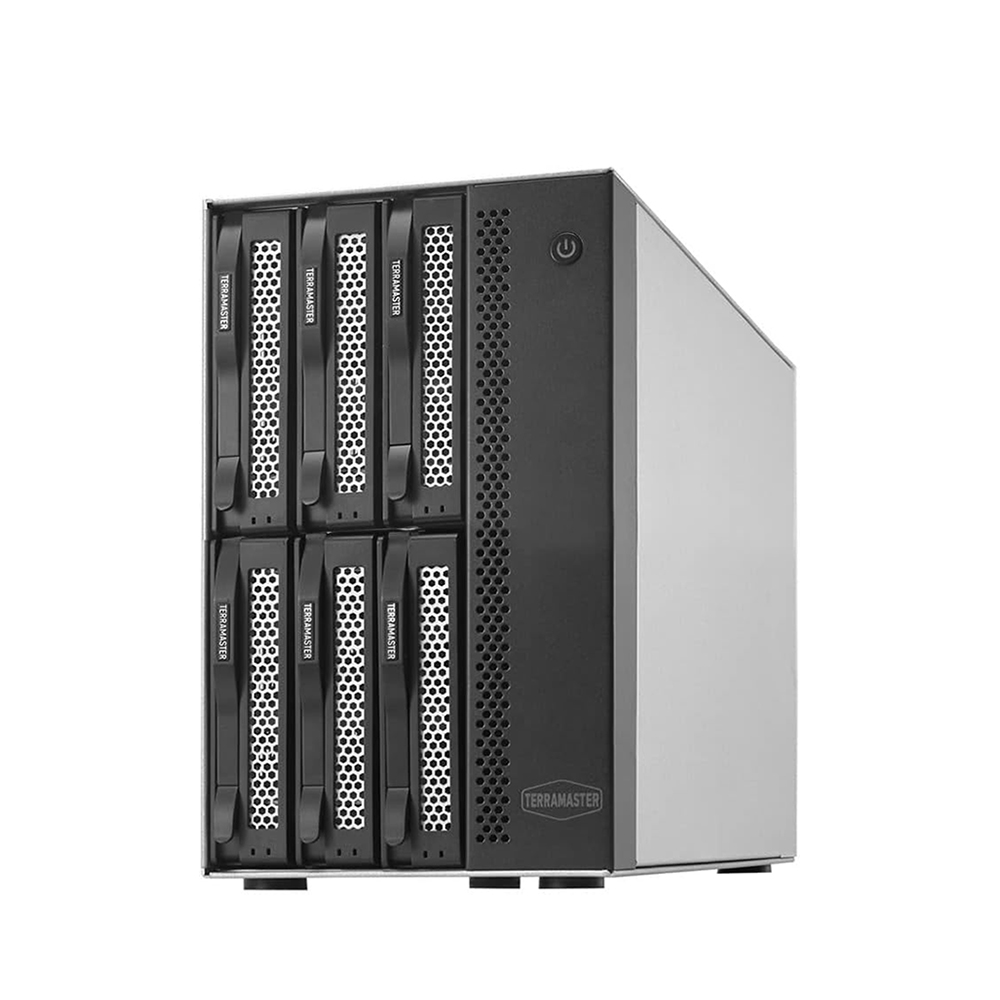

D6-320 is of an all-metal fuselage with a compact structure. Through structural optimization, the space occupation is greatly reduced, thus reaching a small size. Meanwhile, D6-320 is designed as vertical and horizontal types to better meet the requirements of small commercial clients with limited space.

Automatic Backup

TPC Backupper is an extremely user-friendly Windows PC backup tool that allows you to schedule the backup of folders and disk partitions on your Windows PC to TerraMaster USB devices or NAS network storage servers.To start automatic backups, simply connect the device to your computer, install the TPC Backupper client, and set up a scheduled backup task.This straightforward and reliable backup solution enables you to concentrate on your work, while in the background the TerraMaster D6-320 concentrates on its work to protect your crucial data. TPC Backupper supports both incremental and differential backup strategies and is compatible with Windows 8/8.1/10/11.
