| Model: Terramaster D5 ThunderBolt 3
Với Terramaster D5 ThunderBolt 3 - Gia tăng dung lượng lưu trữ RAID tốc độ cao lên đến 80TB vào thiết lập chỉnh sửa video chuyên nghiệp của bạn.
Được thiết kế cho việc chỉnh sửa video và streaming video 4K, D5 ThunderBolt 3 trang bị 5 khay ổ cứng với chế độ RAID tích hợp giúp bạn nhanh chóng có được tốc độ lên đến 1035MB/s và hỗ trợ mở rộng giải pháp lưu trữ lên đến hàng trăm Terabytes một cách dễ dàng với kết nối Daisy Chain lên đến 6 thiết bị cùng lúc.
- High Capacity: The D5 Thunderbolt 3 supports up to five 2.5" and 3.5" drives for a maximum capacity of 80TB. Up to six Thunderbolt 3 devices can be daisy chained together.
- Professional-Grade Speed: The high-speed RAID enclosure transfers data at up to 1035 MB/s in RAID 0 with a write speed of up to 850 MB/s over your 40 GB/s Thunderbolt 3 connection. Speeds of up to 1400 MB/s can be achieved in RAID 5.
- Multi-Display Support: Up to three displays can be connected to the D5 Thunderbolt 3 through its DisplayPort and Thunderbolt 3 ports.
|
20.800.000 vnđ
(Hàng chính hãng, bảo hành 2 năm từ Terramaster)
|
|
|
|
|
|
| Thông số kỹ thuật |
| Manufactor: |
TERRAMASTER |
| Type: |
Box HDD/SSD |
| Disk Slot Number: |
5 |
| Compatible Disk Types: |
- HDD 3.5" SATA
- HDD 2.5" SATA
- SSD 2.5" SATA
|
| File System: |
NTFS, APFS, Mac OS, FAT32, EXT4, exFAT |
| Maximum Internal Raw Capacity: |
80TB (16 TB drive x 5) (Capacity will vary along with the RAID type) |
| RAIDs Supported: |
- RAIDs Supported: SINGLE DISK, JBOD, RAID 0, RAID 1, RAID5, RAID10
- Hardware RAID: Yes
- RAID Manager Software: Yes
- RAID Manager Software Language: English, Chineses, Japanese
- RAID Auto-rebuilding: Yes

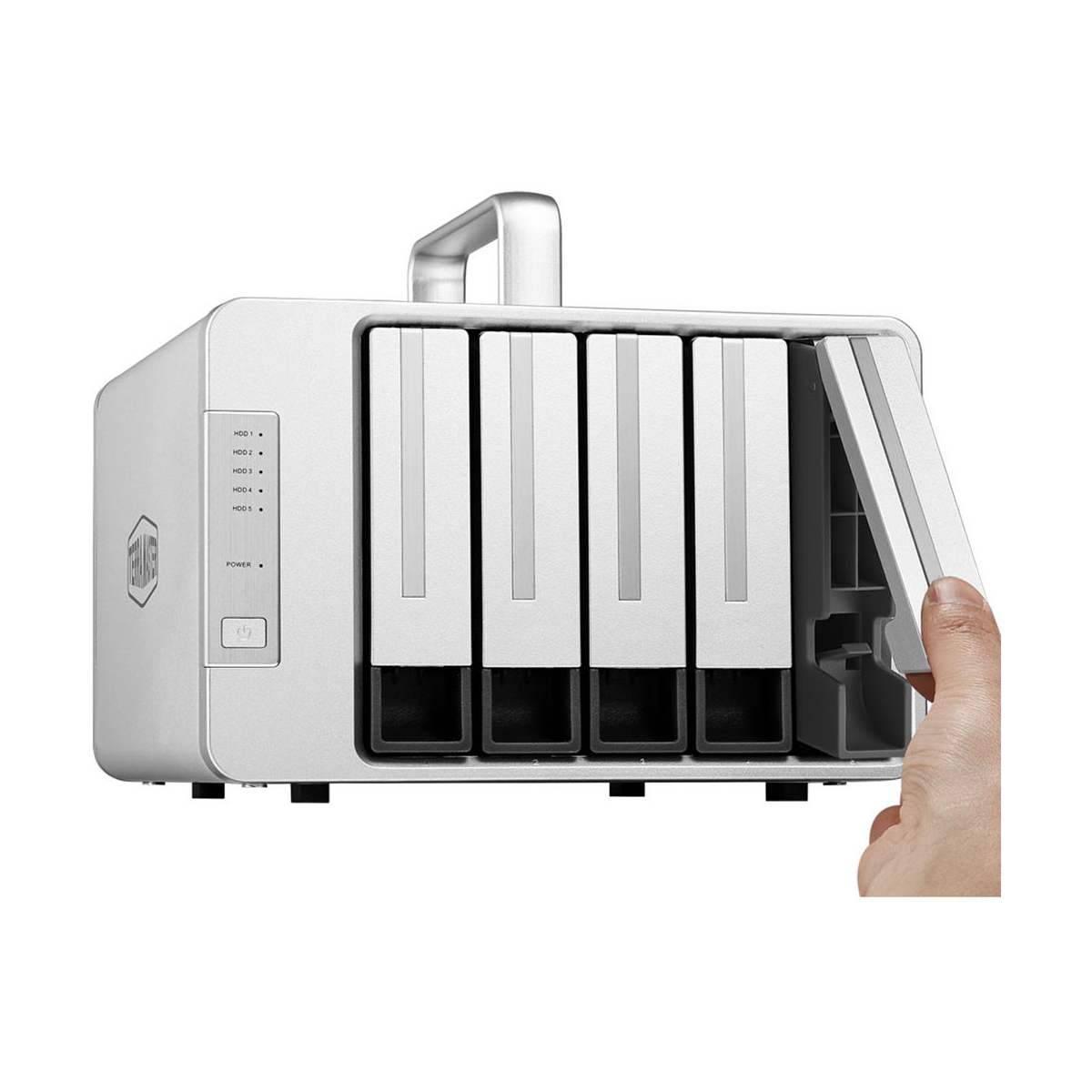

- Drive Hot Swap: Yes
- HDD Sleep: Yes
- HDD S.M.A.R.T. Inspection: Yes
- Sector Inspection and Parity Check: Yes
- SSC Cache: Yes
- Daisy Chain: Yes
- HDD NCQ Technology: Yes
- Alert Notice: Yes
- Event Log: Yes
|

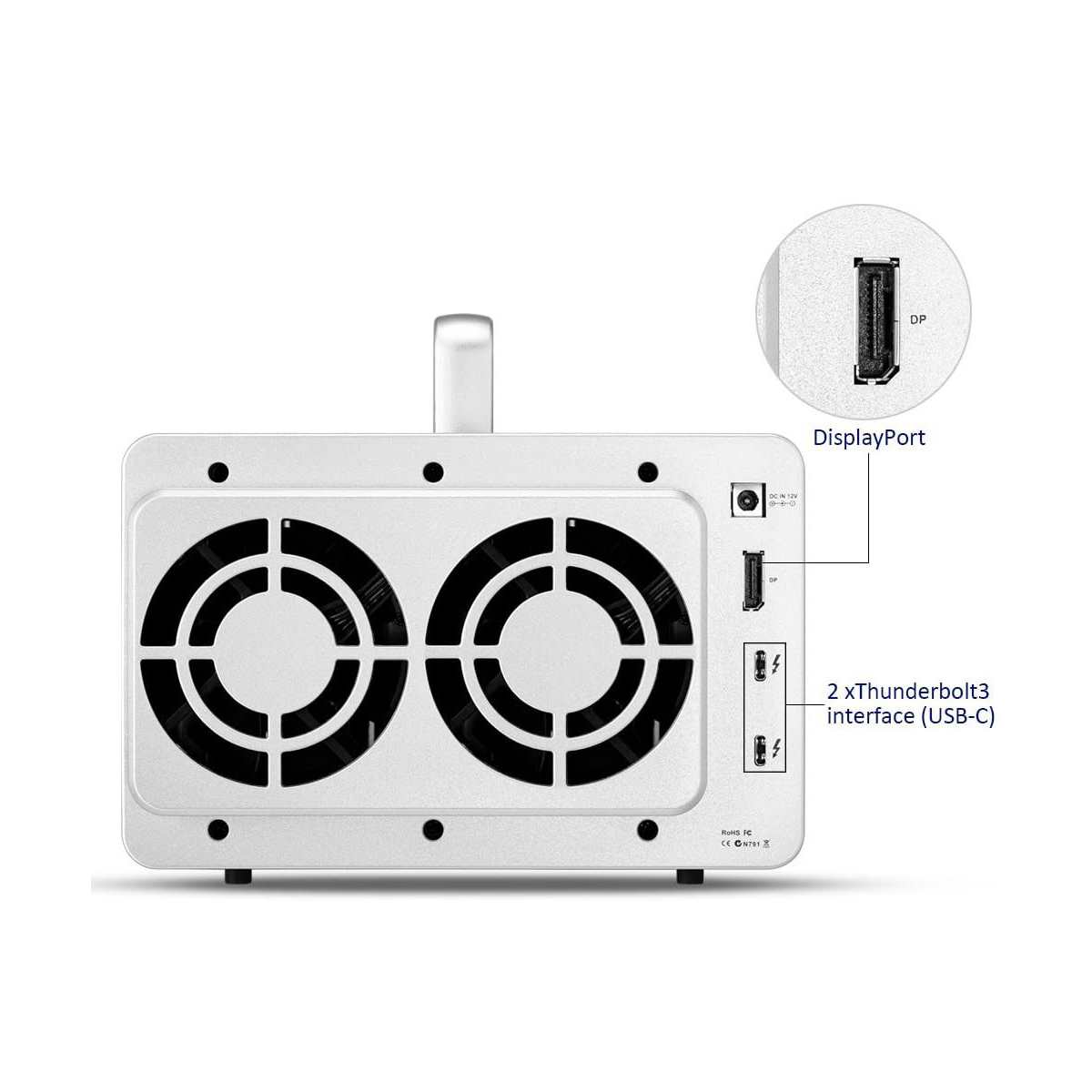

| Connection: |
- ThunderBolt: 2 x Thunderbolt 3 40Gb
- USB Host: USB 3.1 Gen2 host (Use to connect USB storage device)
- DP Interface: DP 1.4 x 1
|
| Reading/writing Speed (max.): |
- Read: 1035MB/sec(Use HDD under RAID 0 mode); Read: 830MB/sec(Use HDD under RAID 5 mode)
- Write: 917MB/sec(Use HDD under RAID 0 mode); Write: 850MB/sec(Use HDD under RAID 5 mode)
|
| System fan: |
2 x Fan: 80 mm x 80 mm x 25 mm |
| Fan mode: |
Smart |
| Noise Level: |
19.8dB(A) |
| Power Supply: |
- Power Supply: 120W
- Power Socket: DC IN 12V
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 HZ, Single Phase
- Power Consumption: 76.8W (Access)
|
| Environment Temperature: |
- Working Temperature: 5°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
|
| Supported OS: |
Windows OS、Mac OS |
| Certificate: |
CE, FCC, CCC, KC, RoHS compliance |
| Size: |
227 x 225 x 176 mm |
| Weight: |
2.3 Kg |
| Color: |
Silver |
| In the box: |
- 1 x Terramaster D5 ThunderBolt 3
- 1 x Thunderbolt 3 cable (40Gbps) 0.8 Meter
- 1 x Power cord
- 1 x Power Adapter
- 1 x Screws Kit
- 1 x Quick start guide
- 1 x Limited Warranty Note
|
|
|
Video Terramaster D5 ThunderBolt 3
|
|
|

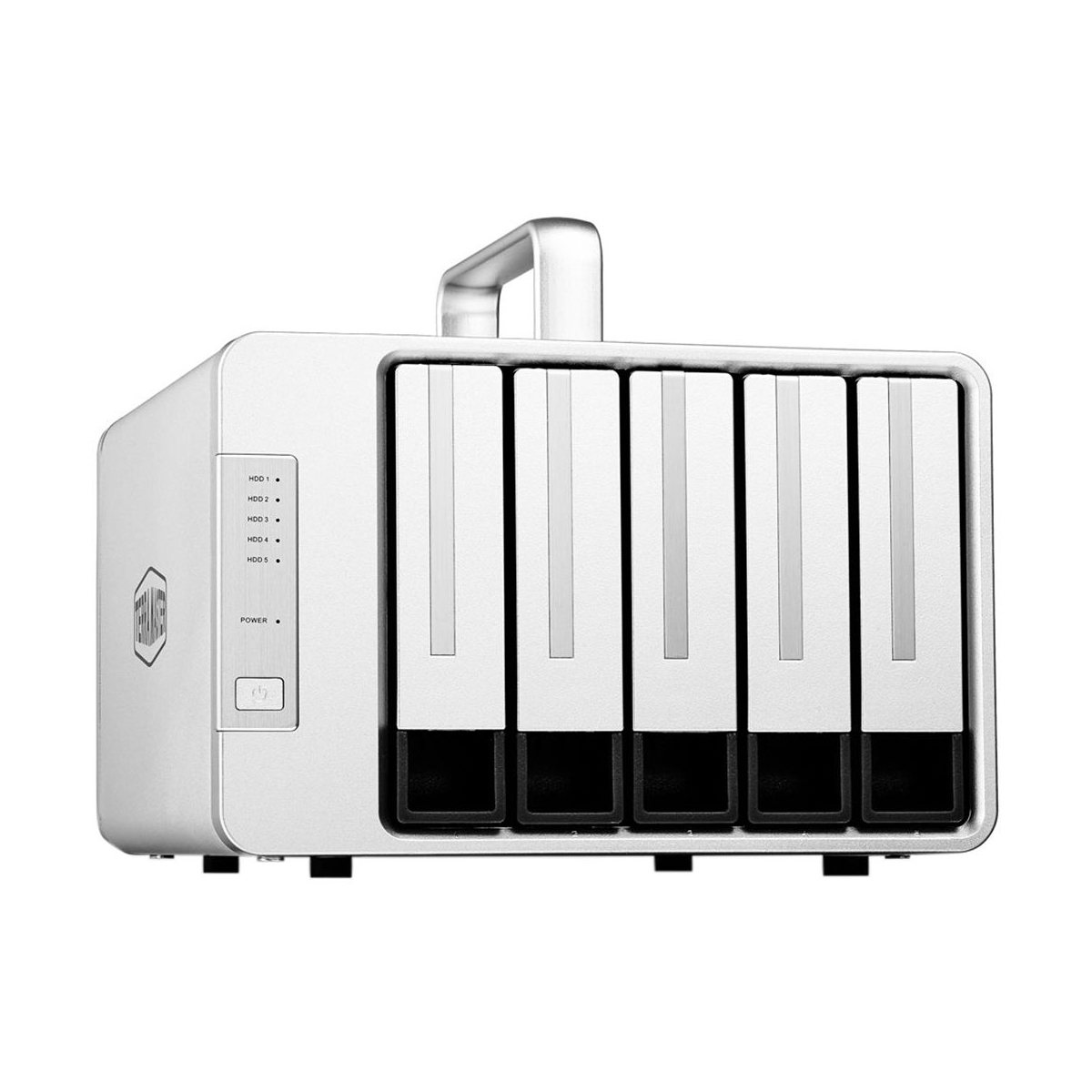

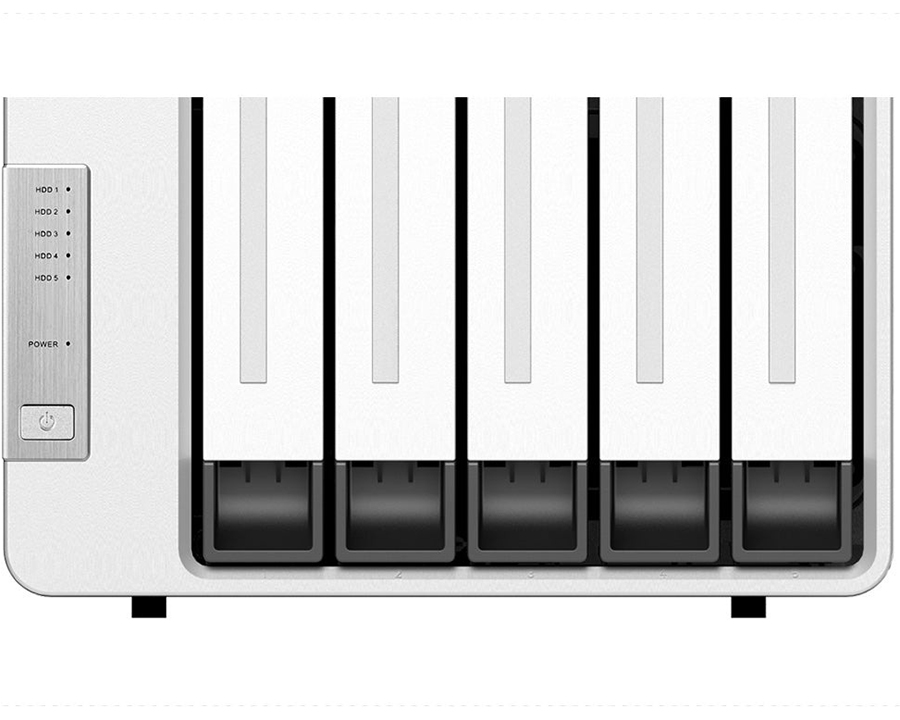

Large Storage Capacity
TerraMaster’s 5-bay D5 Thunderbolt 3 is compatible with 3.5" SATA disks and 2.5" SSDs, allowing professionals to capitalise on a total storage capacity of up to 90TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.
|
|
|
Lightning Speed!
The D5 Thunderbolt 3 is equipped with a 40-Gbps lightning speed interface, and the read and write support attains speeds of up to 1,035 MB/s (test conditions: 5 HDDs, RAID 0 mode). The device is compatible with daisy chaining across multiple Thunderbolt™ 3 devices, and each one can be realized using the Thunderbolt interface.
|
|
|
|
|

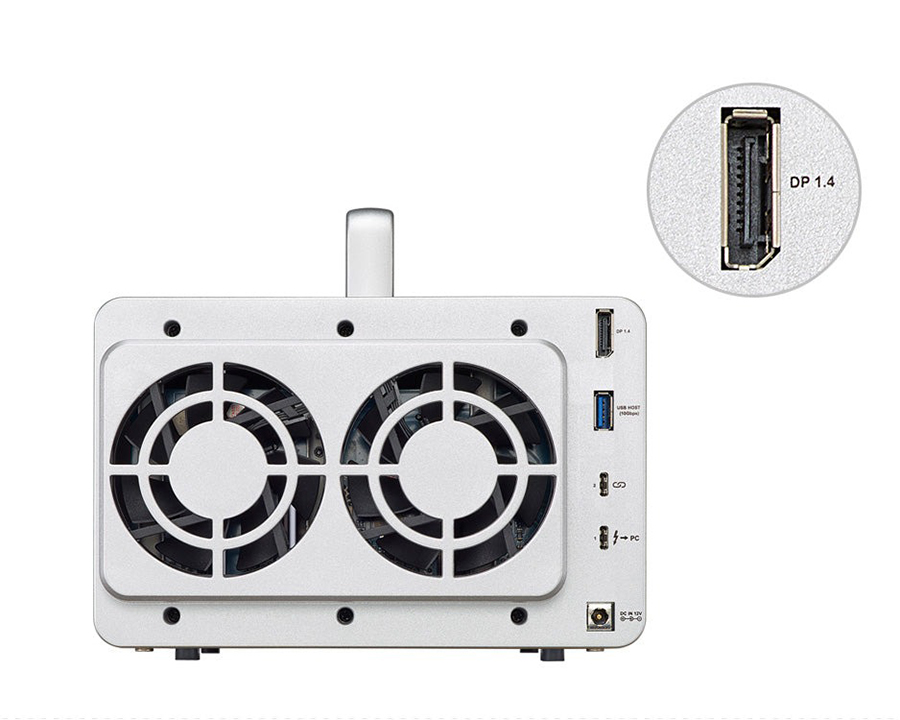

Dedicated DP Interface
Given its HD DP digital interface, video editors can connect the D5 Thunderbolt 3 to a 4K HD display to satisfy their needs.
|
|
|

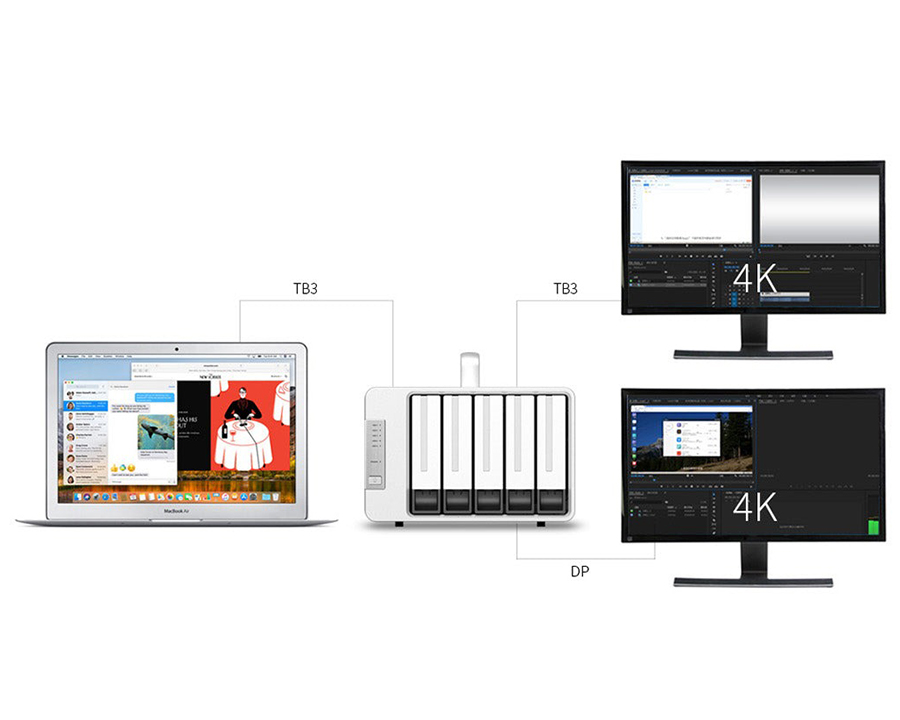

Multi-Screen Display
Capitalising on the Thunderbolt 3 and DP interfaces, the D5 Thunderbolt 3 supports multi-screen display with up to 3 screens. This is an ideal solution for multitaskers, especially when efficiency is the end goal.
|
|
|
|
|
Multiple RAID Supports
The D5 Thunderbolt 3 can operate with RAID 0, 1, 5, and 10, as well as JBOD disk array modes for all your application needs. This underpins the all-important concern for guaranteed data security, and it ensures that your storage capacity is utilised in the most efficient way possible.
|
|
|

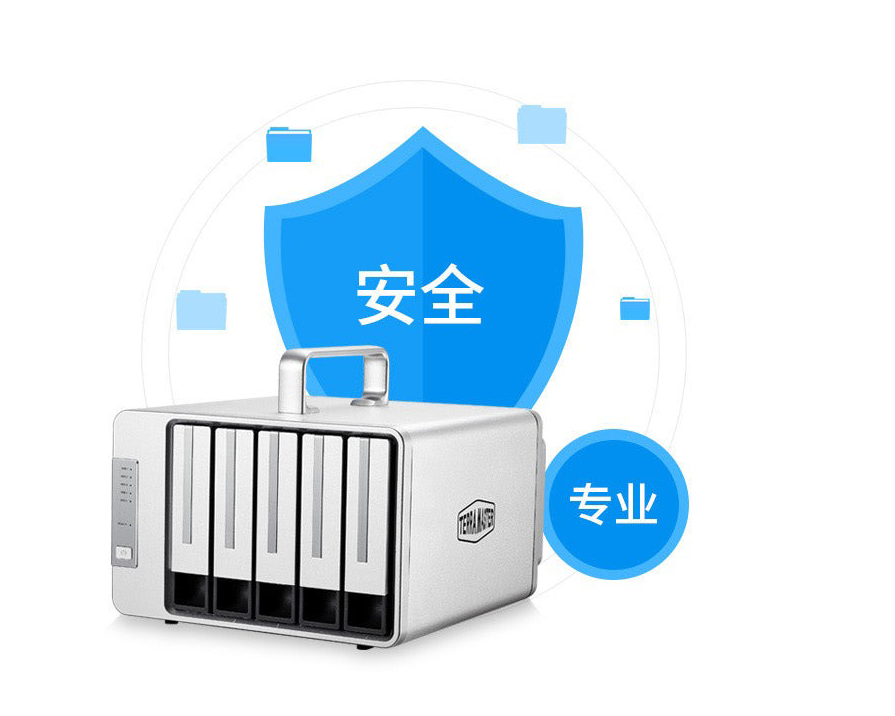

Professional and Safe
Replacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D5 Thunderbolt 3, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.
|
|
|
|
|
The Ideal Companion for All Professionals
Given its compactness, its large storage capacity, and its lightning speed, the D5 Thunderbolt 3 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Other users, especially those with strict speed and storage requirements, will find a valuable partner in this device.
|
|
|
Authoritative Quality Certification
Both Apple and Intel have certified the D5 Thunderbolt 3’s design and performance, ensuring the device’s consistent performance and reliability.
|
|
|
|
|
|
|
