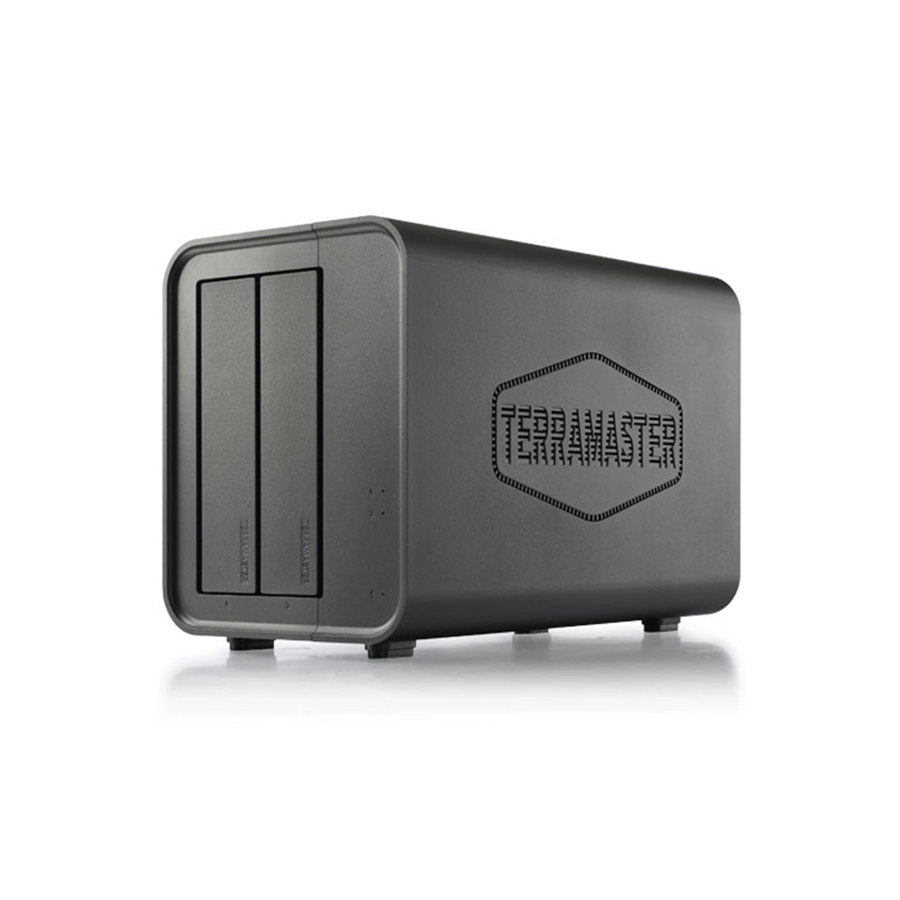

Terramaster D2-320

Terramaster D2-320 là một trong những dòng Box ổ cứng phổ biến nhất từ hãng Terramaster, được xây dựng dựa trên giao thức USB 3.2 Gen2 giúp bạn có được tốc độ cực nhanh lên đến 521MB/s với 2 x HDD hoặc lên đến 1075MB/s với 2 x SSD khi được lắp đặt.

Đặc biệt, Terramaster D2-320 được trang bị phần cứng RAID Hardware giúp bạn nhanh chóng thiết lập các chế độ RAID 0, RAID 1, JBOD hay SINGLE DISK giúp dữ liệu của bạn được bảo vệ một cách an toàn nhất.

Hơn nữa, Terramaster D2-320 còn tích hợp Push-lock Design độc đáo hoàn toàn mới từ TerraMaster, tự động khóa khay ổ cứng khi bạn lắp ổ cứng vào, ngăn ổ cứng rơi ra hoặc bị ngắt kết nối.

• High Speed: The D2-320 hard drive enclosure adopts USB 3.2 Gen2 protocol for high-speed data transmission up to 10Gbps. With 2 hard drives in RAID 0, the read/write speed can reach up to 521MB/s (SATA III HDD 8TB x 2). With 2 SSD’s in RAID 0, the read speed can reach 1075MB/s (SATA III 1TB SSD x 2).
• Multiple RAIDs supported: The D2-320 is a hardware RAID enclosure and it supports RAID 0, RAID 1, JBOD and SINGLE which can better satisfy various demands of users. In RAID 1, data will be in a mirror backup. When there is a damaged hard drive, you can directly replace the hard drive, and the data will be recovered automatically. This provides an absolute security for the data.
• Super-large Storage Space: The D2-320 USB storage enclosure can support up to two 3.5" and 2.5" SATA HDD, as well as 2.5" SATA SSD, with a maximum capacity of 22TB per drive, providing users with up to 44TB (22TB x 2) of storage space.
• Better Heat Dissipation: The D2-320 HDD enclosure has an intelligent temperature-controlled and low-noise fan that automatically adjusts its speed based on the temperature of the hard disk. This feature ensures that the hard disk operates at its best temperature and provides better heat dissipation.
• Convenient to swap hard drives: The D2-320 external hard drive enclosure features a tool-free hard drive tray design that allows for easy installation and removal of hard drives without the need for any tools. Furthermore, the D2-320 incorporates a brand new Push-lock unique design from TerraMaster, which automatically locks the hard drive tray when you insert the hard drive, preventing the hard drive from falling out or disconnecting.

4.650.000 vnđ

• HDD 3.5" SATA
• HDD 2.5" SATA
• SSD 2.5" SATA

• RAIDs Supported: SINGLE DISK,JBOD,RAID 0,RAID 1
• Hardware RAID: Yes
• RAID Auto-rebuilding: Yes
• HDD Sleep: Yes

• Read：565MB/s ( SSD* 1 ); Read：1075MB/s ( SSD* 2 )
• Write：524MB/s ( SSD*1 ); Write：956MB/s ( SSD*2 )

• Power Supply: 40W
• AC Input Voltage: 100V to 240V AC
• Current Frequency: 50/60 HZ, Single Phase
• Power Consumption: 19.4W (in read/write state), 5.2 W (in hibernation)

• Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
• Relative Humidity: 5% ~ 95% RH

• 1 x Terramaster D2-320
• 1 x USB Cable C to Type-C (10Gb) (0.8m)
• 1 x Power Adapter
• 1 x Screws Kit
• 1 x Quick start guide
• 1 x Limited Warranty Note

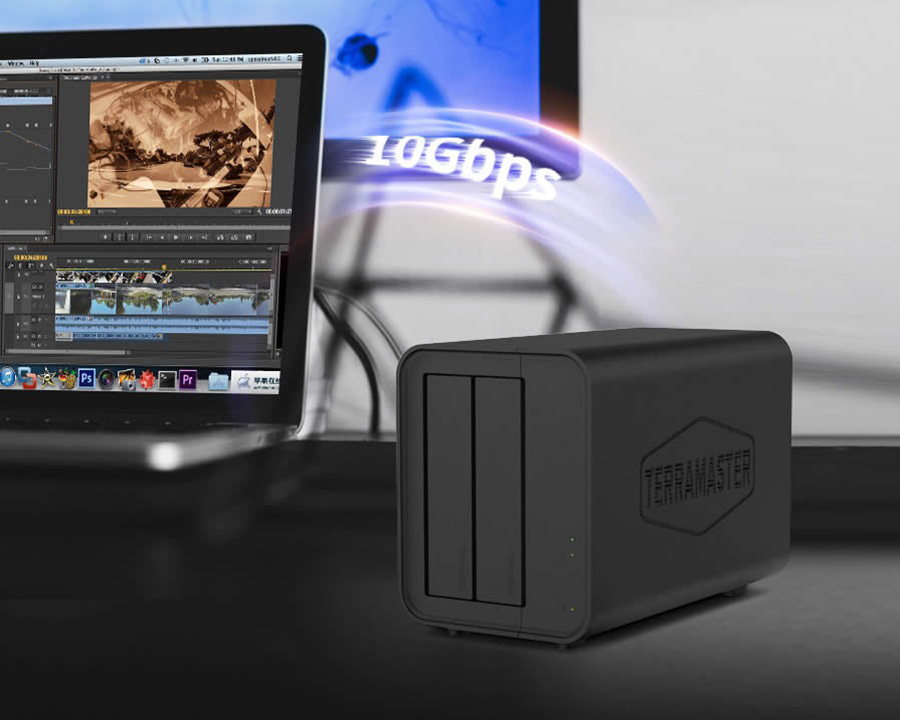

High Speed

With adoption of the USB3.2 Gen2 protocol, D2-320 provides a 10Gbps data transmission bandwidth, with the actual read/write speed up to 521MB/s when 2 hard drives are installed (Seagate Eoxs 22TB X2 RAID 0); with two hard disk installed, the read speed could reach 1075MB/s (SAMSUNG 870QVO 1TB SSD X2 RAID 0).

Super-large Storage Space

D2-320 supports up to 2 hard drives and a maximum drive capacity of 22TB (the compatibility with larger hard drives not verified yet), providing users with a storage space up to 44TB (22TB x 2).

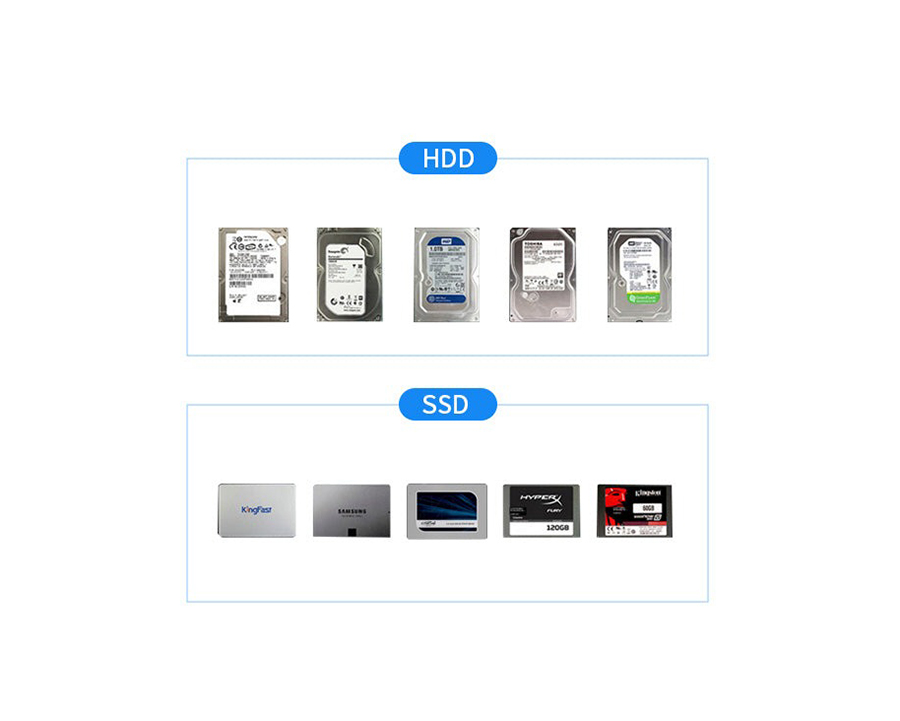

Compatible with hard disks in different kinds

D2-320 is compatible with various hard disks, such as 3.5-inch and 2.5-inch SATA hard disks, and 2.5-inch SATA SSD. Remark: using incompatible hard disk may cause your device disconnected, with low speed and failure in hard disk recognition. Before you purchase, please be sure to check the compatibility list of TerraMaster hard disks .

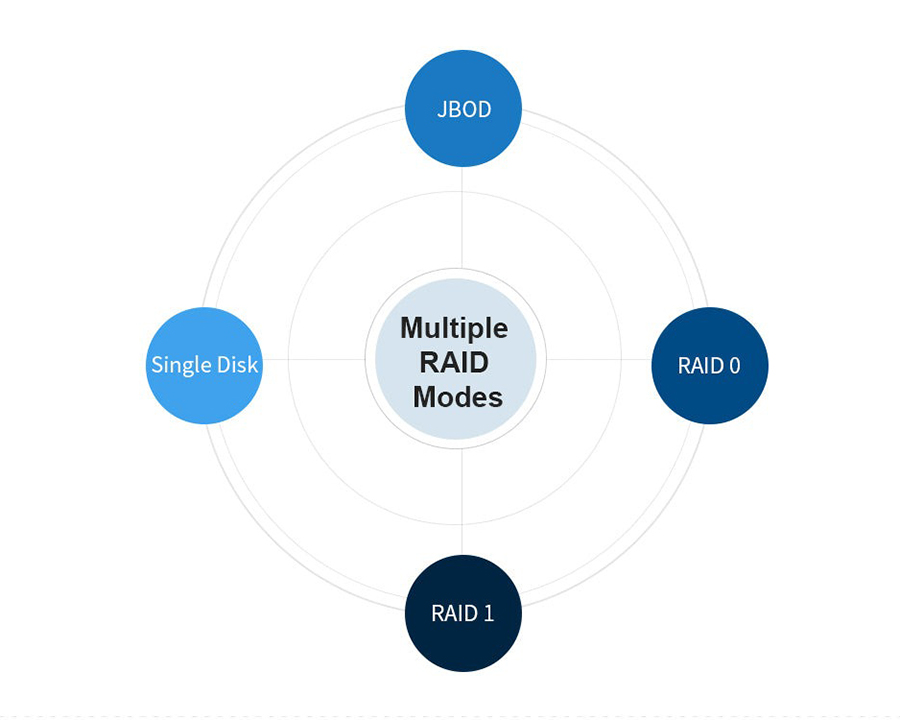

Multiple RAID Modes

Supports multiple RAID modes: RAID 0, RAID 1, JBOD, and Single Disk. Professionals can choose one or more according to their application scenarios.

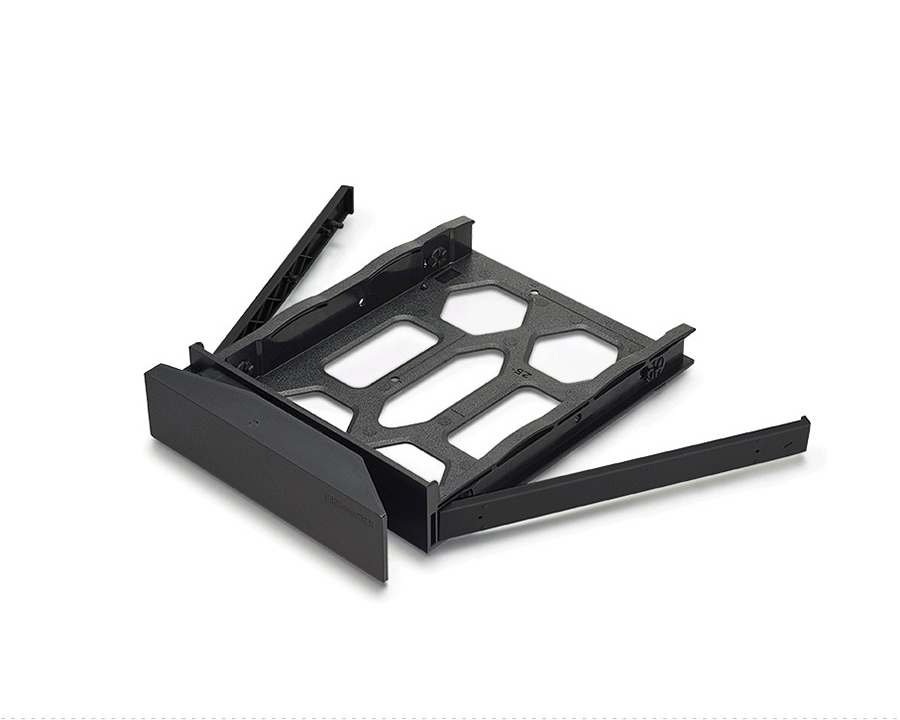

Convenient to swap hard drives

The D2-320 features a tool-free hard drive tray design that allows for easy installation and removal of hard drives without the need for any tools. Furthermore, the D2-320 incorporates a brand new Push-lock unique design from TerraMaster, which automatically locks the hard drive tray when you insert the hard drive, preventing the hard drive from falling out or disconnecting. As a result, installing a hard drive takes less than 10 seconds, providing great convenience for users who frequently swap hard drives to exchange data.

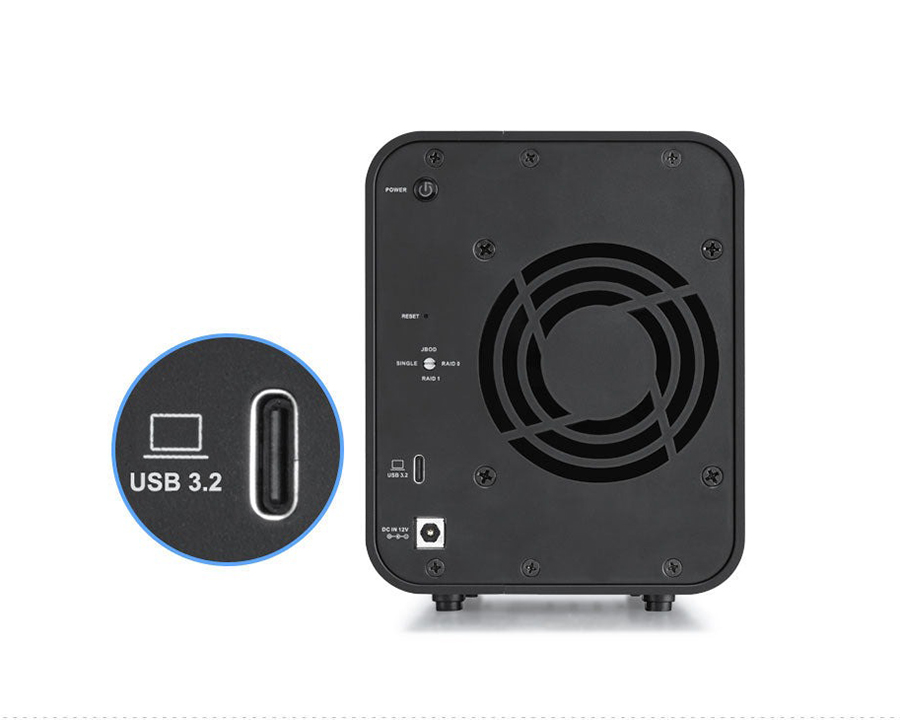

Highly Compatible Interface

D2-320 is equipped with a USB Type-C interface and a USB type C-type C cable (0.8 meter in length), and could be compatible with a variety of computer interfaces: USB 3.0/USB 3.1/USB 3.2/Thunderbolt 3/Thunderbolt 4.

Expansion of NAS Storage Space

D2-320 can be connected to the USB interface of TerraMaster NAS after special adaptation and adjustment. Creating arrays and storage pools on D2-320 with TerraMaster TOS could expand the storage space of NAS. Remark: this function works only on TerraMaster NAS running TOS 5.1 or above.

Intelligent Disk Sleep

D2-320 supports the sleep function, which can follow the computer OS to sleep, effectively reducing the working duration and power consumption of the hard disk, and extending its service life.

Safer

To prevent equipment and hard disk from being damaged by use of an improper power supply, D2-320 adopts the power supply protection. In case of an improper power supply connected, the device will enable automatic protection to prevent itself and the hard disk from damage.

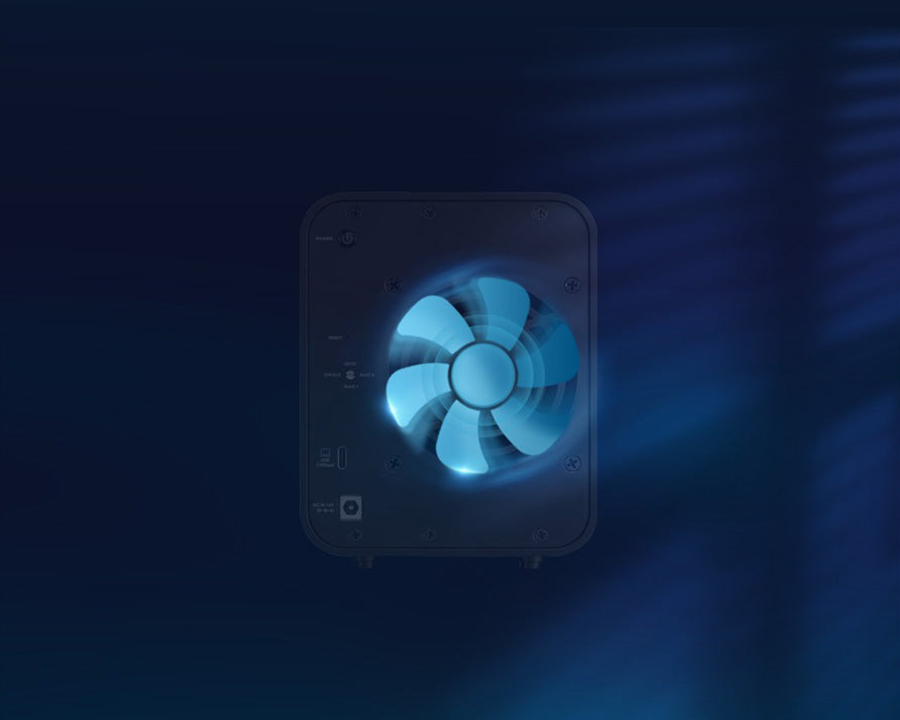

Very Quiet

D2-320 adopts an intelligent temperature-controlled and low-noise fan that adjusts its speed automatically based on the temperature of the hard disk to ensure the hard disk to work at the best operating temperature. Furthermore, the internal structure of the device is specially optimized, which not only effectively increases the internal air pressure and reduces the working temperature of the hard disk, but also greatly reduces the resonance between device components and the hard disk.With this feature, D2-320 can maintain satisfactory low noise even under a full-load working environment.

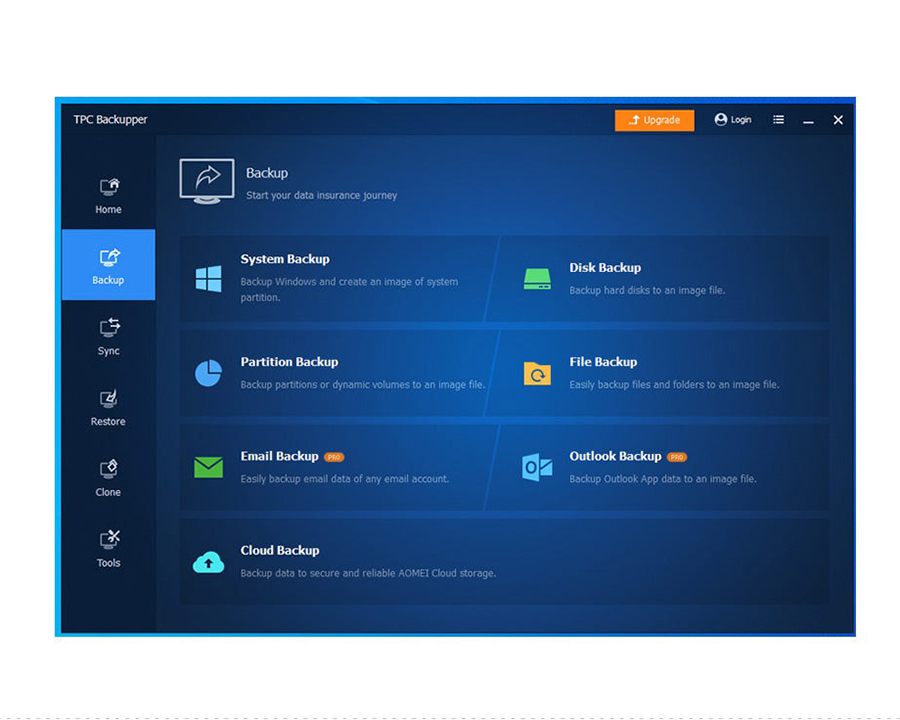

Automatic Backup

TPC Backupper is an extremely user-friendly Windows PC backup tool that allows you to schedule the backup of folders and disk partitions on your Windows PC to TerraMaster USB devices or NAS network storage servers.To start automatic backups, simply connect the device to your computer, install the TPC Backupper client, and set up a scheduled backup task.This straightforward and reliable backup solution enables you to concentrate on your work, while in the background the TerraMaster D2-320 concentrates on its work to protect your crucial data. TPC Backupper supports both incremental and differential backup strategies and is compatible with Windows 8/8.1/10/11.

Power-On Recovery Function

This product features a power-on recovery memory function, intelligently handling various power loss scenarios. When the D2-320 is shut down properly, it remains off when power is restored. However, if the device shuts down due to an abnormal power outage, it will automatically power on when electricity is restored. This feature makes the D2-320 an excellent choice for integration with servers, NAS devices, and other systems, enabling automated and unattended management.
