| Nhà sản xuất: |
DJI - United States |
| Type: |
Gimbal for Camera DSLR, Camera Mirrorless |
| Camera Tray Dimensions: |
- Maximum depth from the center of gravity on the camera base plate: 98 mm
- Maximum height measured from top of the camera base plate: 150 mm
- Maximum width: 205 mm
|
| Accessory Port: |
- Mechanical: 1/4”-20, 3/8”-16 Mounting Hole, M4 Mounting Hole
- Electrical: 12V/2A Power Accessory Port, Camera Control Port, 8-pin Port
|
| Input Power: |
- Model: RB1-2400mAh-14.4V
- Type: 18650 LiPo; Capacity: 2400 mAh; Energy: 34.56 Wh
|
| Connections: |
Bluetooth 4.0, USB-C |
| DJI Assistant 2 Requirements: |
Windows 7 or above; Mac OS X 10.11 or above |
| Ronin App Requirements: |
iOS 9.0 or above; Android 5.0 or above |
| Load Weight (Reference Value): |
3.6 kg (Handheld) |
| Angular Vibration Range: |
±0.02° |
| Maximum Controlled Rotation Speed: |
- Pan axis: 360°/s
- Tilt axis: 360°/s
- Roll axis: 360°/s
|
| Mechanical Endpoint Range: |
- Pan axis: 360° continuous rotation
- Tilt axis: +185° to -95°
- Roll axis: 360° continuous rotation
|
| Controlled Rotation Range: |
- Pan axis: 360° continuous rotation (Roll 360 mode)
- Tilt axis: +180° to -90° (Upright Mode), +90° to -135° (Underslung and Flashlight Mode)
- Roll axis: ±30°, 360° continuous rotation
|
| Weight: |
Approx. 3.2 lb(gimbal only), Approx. 4.0 lb (gimbal and grip included) |
| Dimensions: |
Approx. 202×185×486 mm |
| Quick Start Guide : |
Download Quick Start Guide for DJI Ronin S |
| Manual User : |
Download Manual User for for DJI Ronin S |

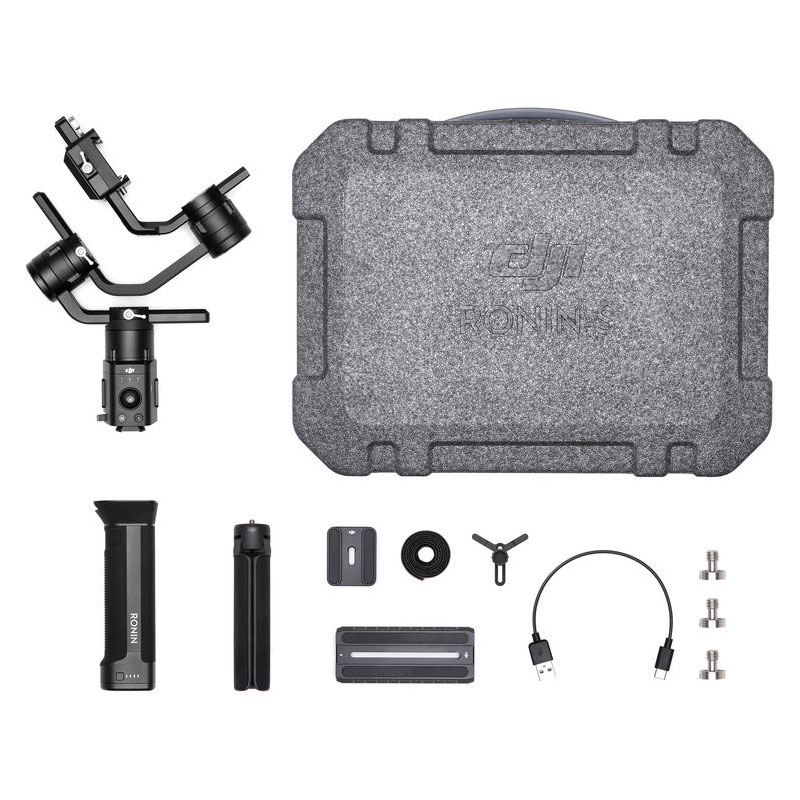

| In the box: |

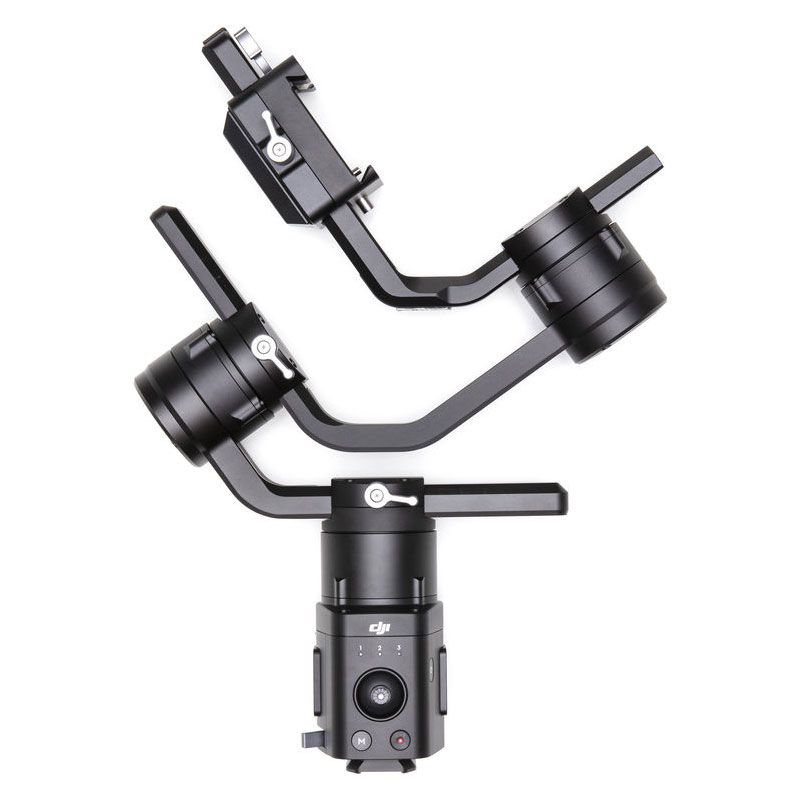

- 1 x Ronin S Gimbal
- 1 x BG37 Grip (Built-In Battery)
- 1 x Camera Mounting Plate
- 3 x Camera Screw 1/4"-20
- 1 x Lens Support
- 1 x Camera Riser
- 1 x USB-C Cable
- 1 x Hook-and-Loop Strap for gimbal
- 1 x Storage Case

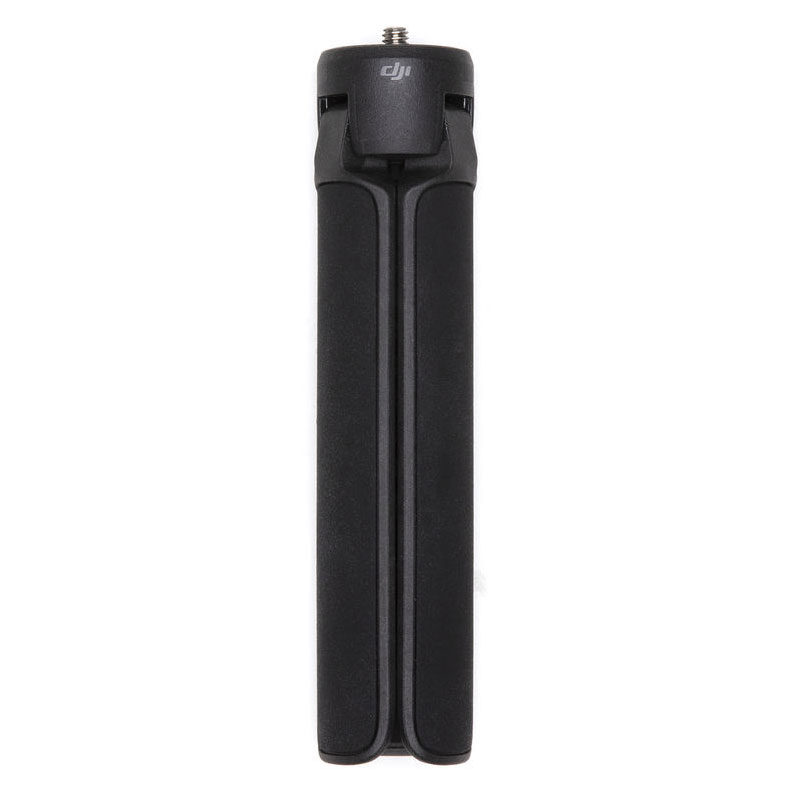

- 1 x Extended Grip/Tripod (Plastic)
|
