Nhà sản xuất: |
DJI - United States |
Type: |
Wireless Microphone |
General: |
- Microphone Directions: All Directions
- Frequency Response: Low Cut Off: 50 Hz - 20 kHz; Low Cut On: 150 Hz - 20 kHz
- Max Sound Pressure Level (SPL): 114 dB SPL
- Max Input Level (3.5 mm): -17 dBV (THD < 0.1%)
- Equivalent Noise: 23 dBA
- Monitor Interface Output Power: Max Output 22mW@1kHz, 32Ω
- Max Transmission Distance: 250 m (FCC), 160 m (CE)
|

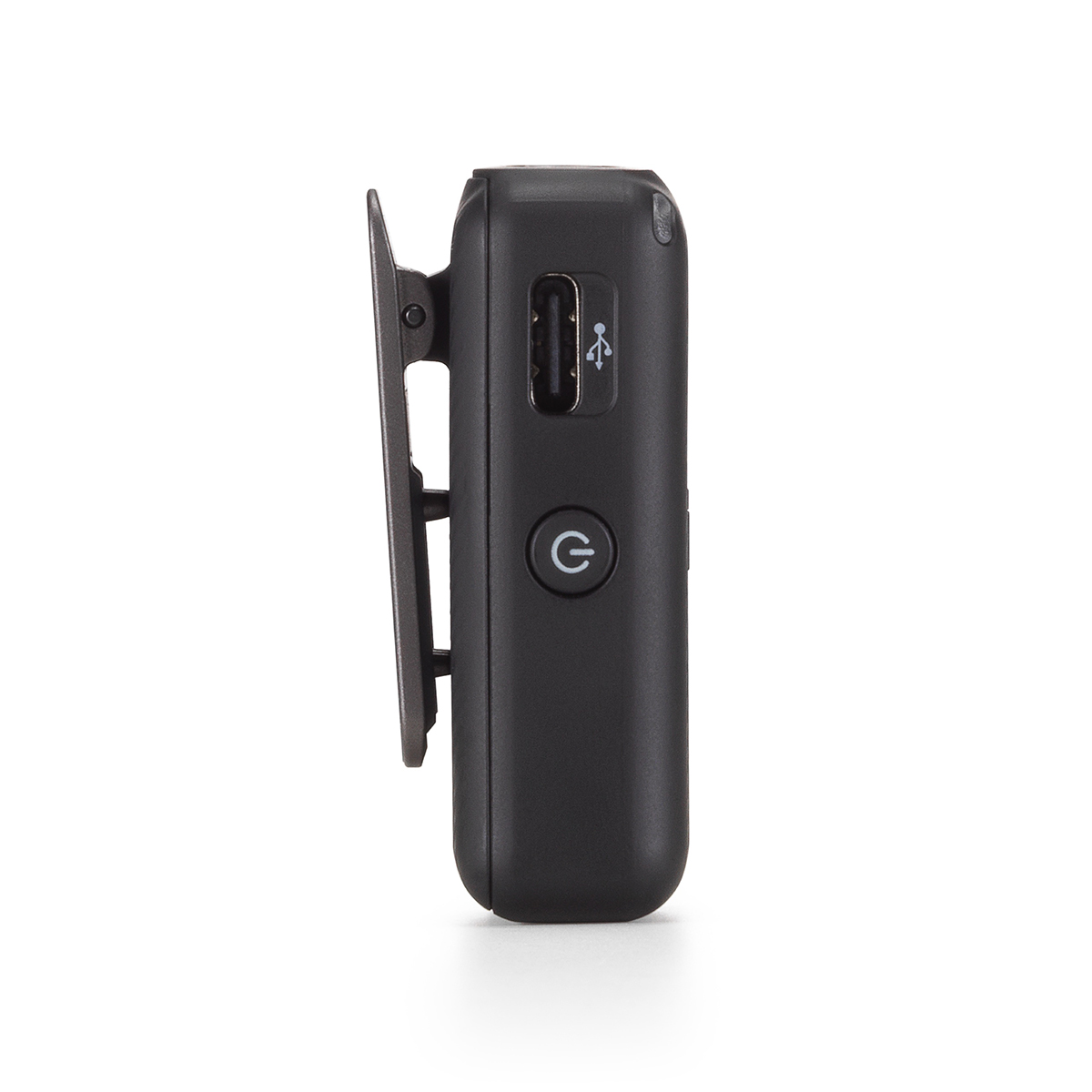

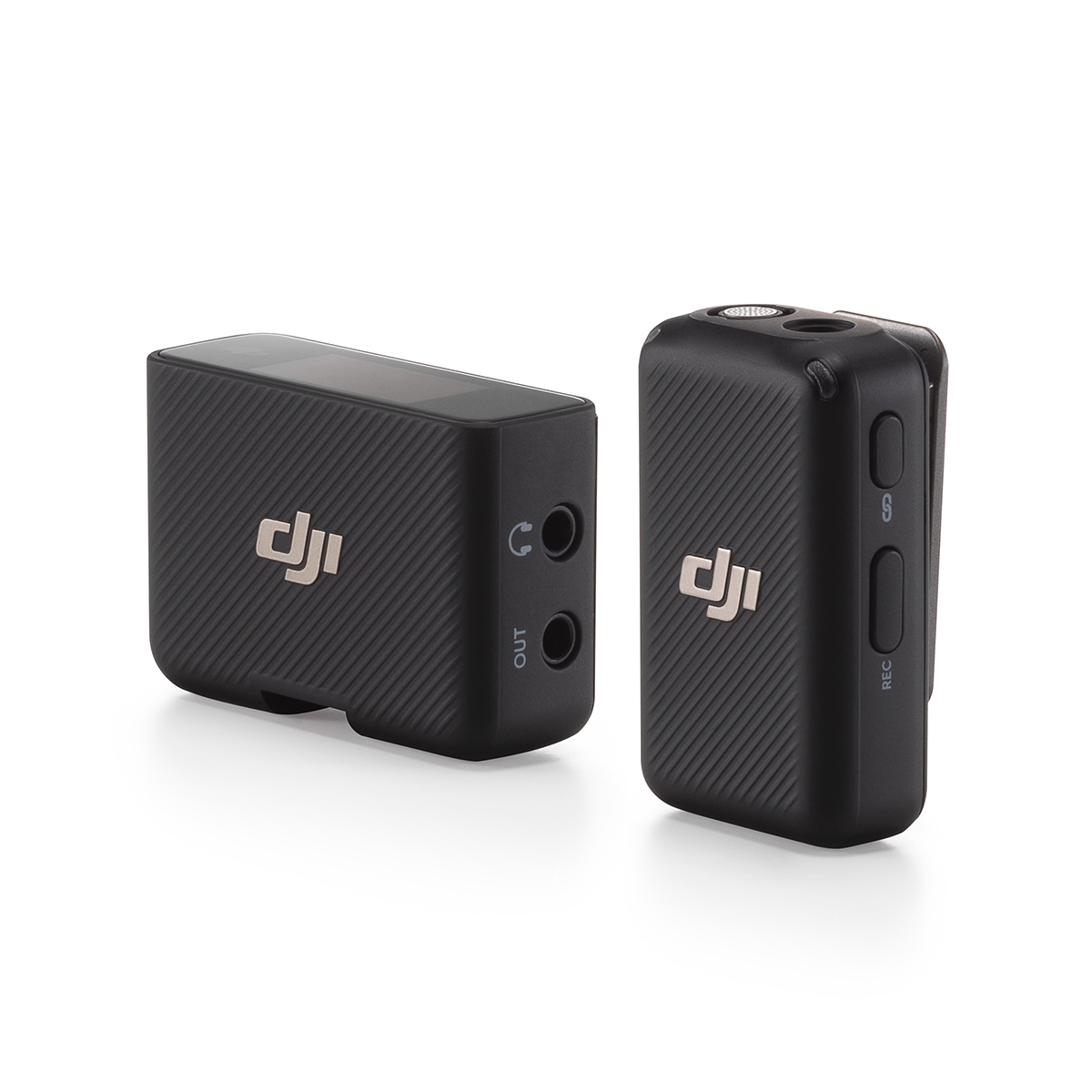

DJI Mic Transmitters: |
- Model: AST01
- Dimensions: 47.32 × 30.43 × 20.01 mm
- Weight: 30g
- Wireless Mode: GFSK 1 Mbps and 2 Mbps
- Equivalent Isotropic Radiated Power (EIRP): <20 dBm
- Operating Frequency: 2400-2483.5 MHz
- Battery Type: LiPo 1S
- Battery Capacity: 320 mAh
- Battery Energy: 1.23 Wh
- Battery Voltage: 3.85 V
- Charging Temperature: 5 to 45° C (41° to 113° F)
- Operating Temperature: -10° to 45° C (14° to 113° F)
- Charging Time: 70 mins
- Operating Time: 5.5 hours
|

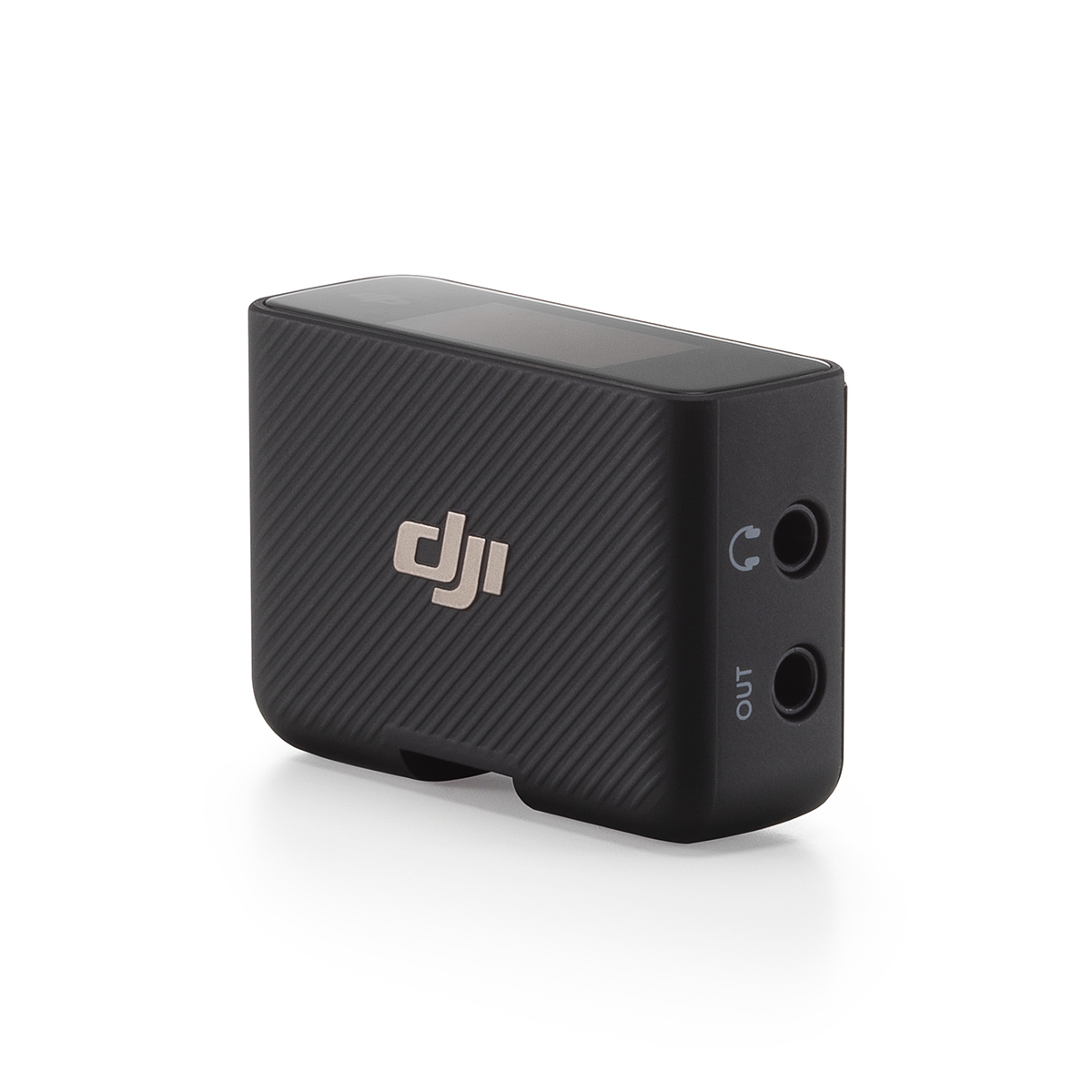

DJI Mic Receiver: |
- Model: ASR01
- Dimensions: 47.44 × 32.21 × 17.35 mm
- Weight: 24.9g
- Wireless Mode: GFSK 1 Mbps and 2 Mbps
- Equivalent Isotropic Radiated Power (EIRP): <20 dBm
- Operating Frequency: 2400-2483.5 MHz
- Battery Type: LiPo 1S
- Battery Capacity: 320 mAh
- Battery Energy: 1.23 Wh
- Battery Voltage: 3.85 V
- Charging Temperature: 5 to 45° C (41° to 113° F)
- Operating Temperature: -10° to 45° C (14° to 113° F)
- Charging Time: 70 mins
- Operating Time: 5 hours
|

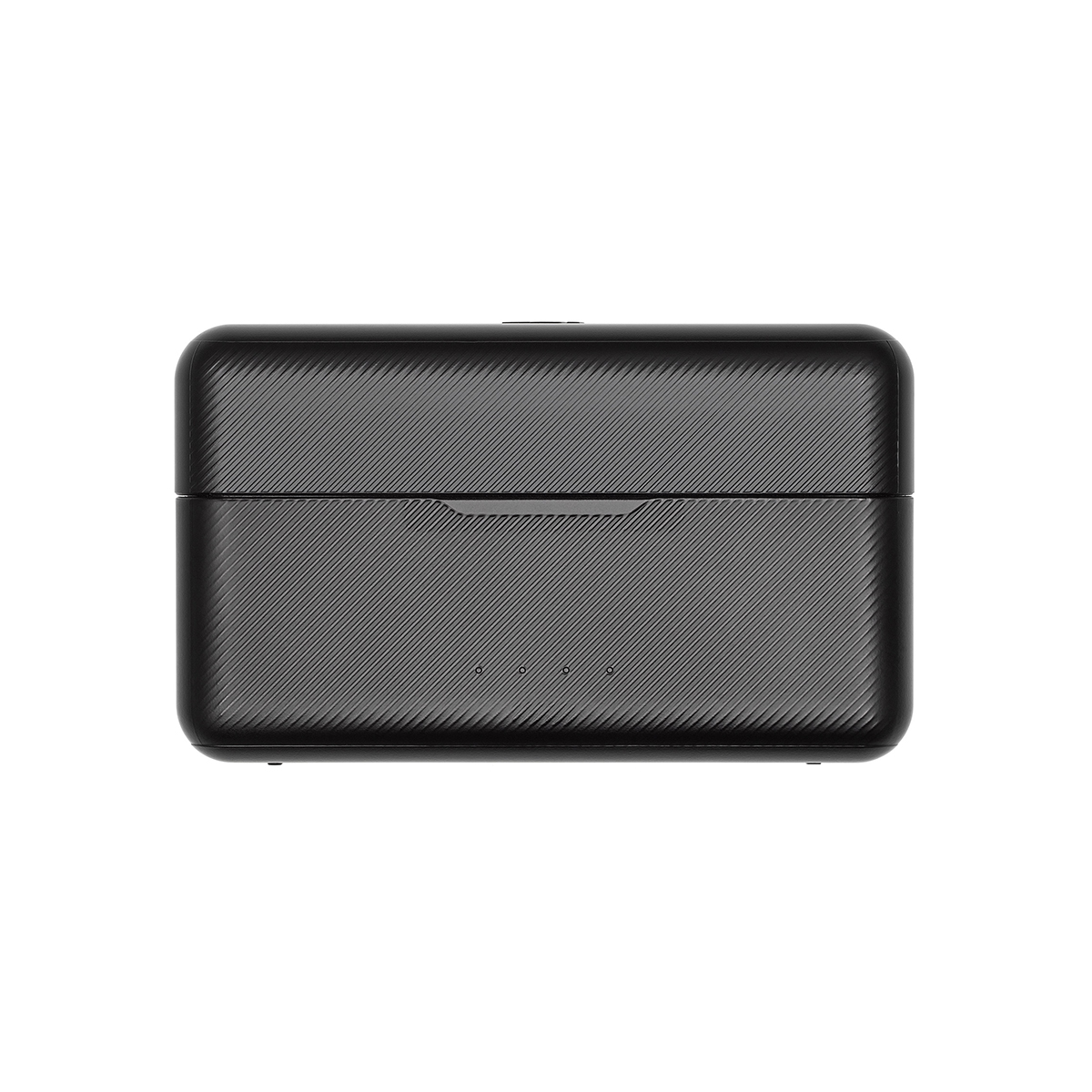

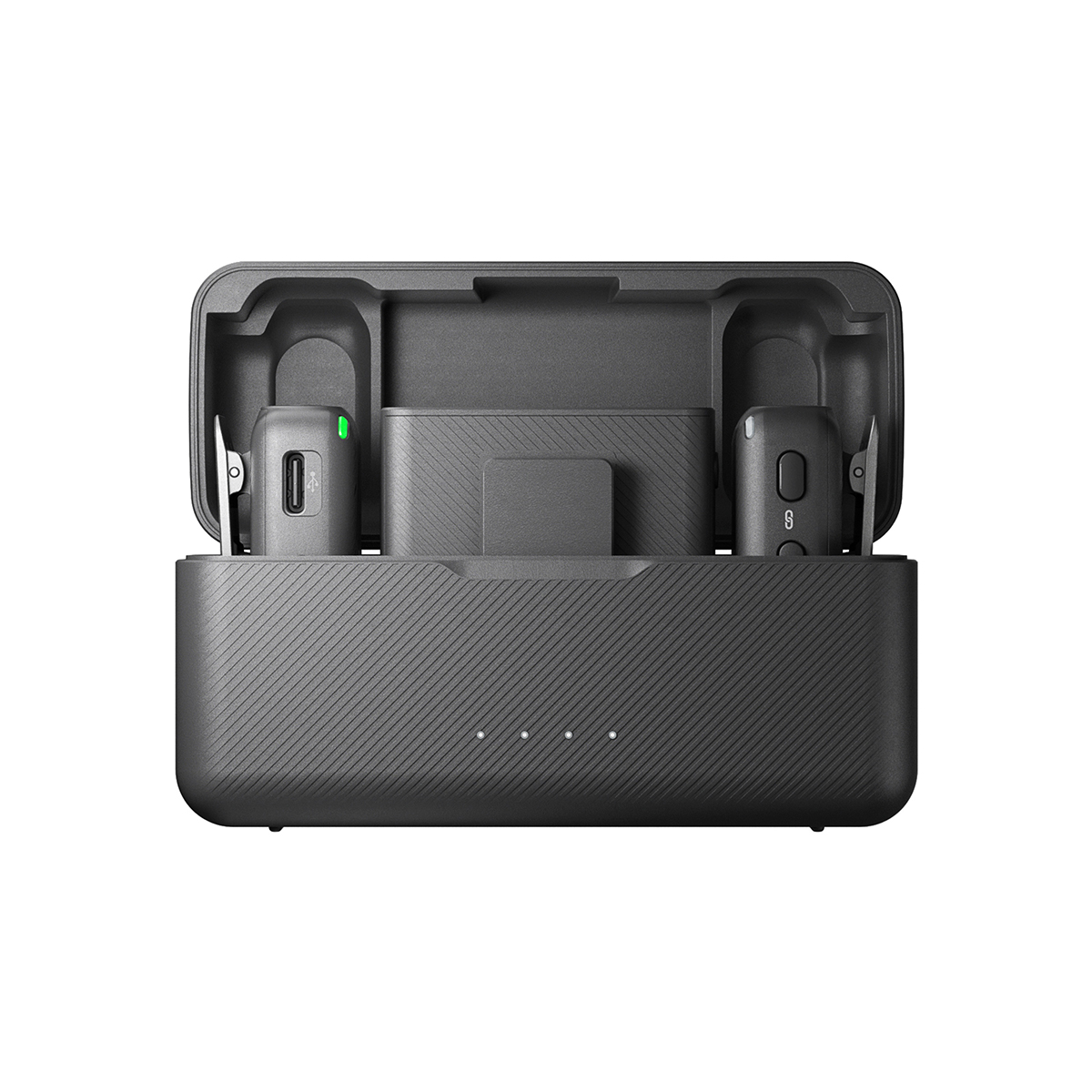

Charging Case: |
- Model: ASB01
- Dimensions: 103.06 × 61.87 × 41.50 mm
- Weight: 162.2 g
- Battery Type: LiPo 1S
- Battery Capacity: 2600 mAh
- Battery Energy: 10 Wh
- Battery Voltage: 3.85 V
- Charging Temperature: 5 to 45° C (41° to 113° F)
- Operating Temperature: -10° to 45° C (14° to 113° F)
- Charging Time: 2 hours and 40 mins
- Operating Time: Fully charge three devices simultaneously 1.8 times
|
Color: |
Black |
Quick Start Guide : |
Download Quick Start Guide for DJI Mic |
Manual User : |
Download Manual User for for DJI Mic |
Mobile Phone Compatibility List : |
Download Mobile Phone Compatibility List for for DJI Mic |

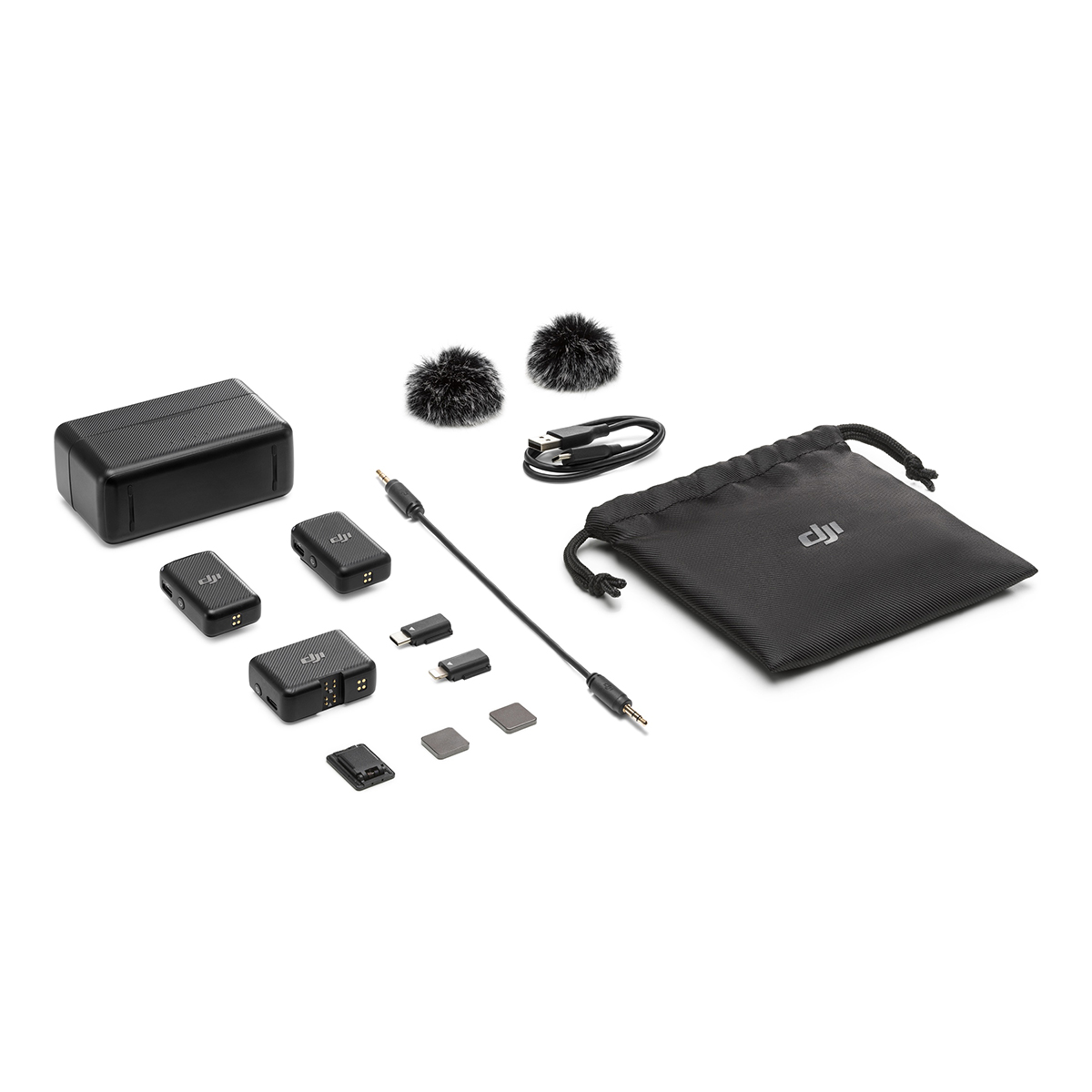

In the box: |
- 1 x DJI Mic Receiver
- 2 x DJI Mic Transmitter
- 1 x DJI Mic Charging Case
- 1 x DJI Mic Camera Audio Cable (3.5mm TRS)
- 1 x DJI Mic Mobile Phone Adapter (Type-C)
- 1 x DJI Mic Mobile Phone Adapter (Lightning)
- 2 x DJI Mic Windscreen
- 2 x DJI Mic Clip Magnet
- 1 x DJI Mic Carrying Pouch
- 1 x DJI Mic Hot Shoe Adapter
- 1 x Charging Cable
|
