| CPU: |
Intel® Core™ i3 Processor 1220P (Total 10-cores with 2 x Performance-cores and 8 x Efficient-cores) |
| Graphics: |
Integrated - Intel® UHD Graphics |
| Memory: |
2 x SODIMM slots, with support for up to DDR4-3200MHz MT/s memory 64GB |
| Storage: |
- 1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe™ SSD
- 1 x M.2 2242 SATA supports 256GB~1TB SSD
- 1 x 2.5" SATA 6Gb/s, supports 4TB 7~15mm HDD (Remark: 2.5" HDD support on TALL SKUs only.)
|
| Wireless Data Network: |
- Intel® Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.2 Wireless Card
- *Bluetooth v5.2 and later version functions to be supported in Windows 11 or later.
- *WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries.
|
| LAN: |
1 x Intel® I225V, 2.5G LAN, or Intel® I225LM, 2.5G LAN, vPro support |
| Audio: |
ALC269, 2 channels |

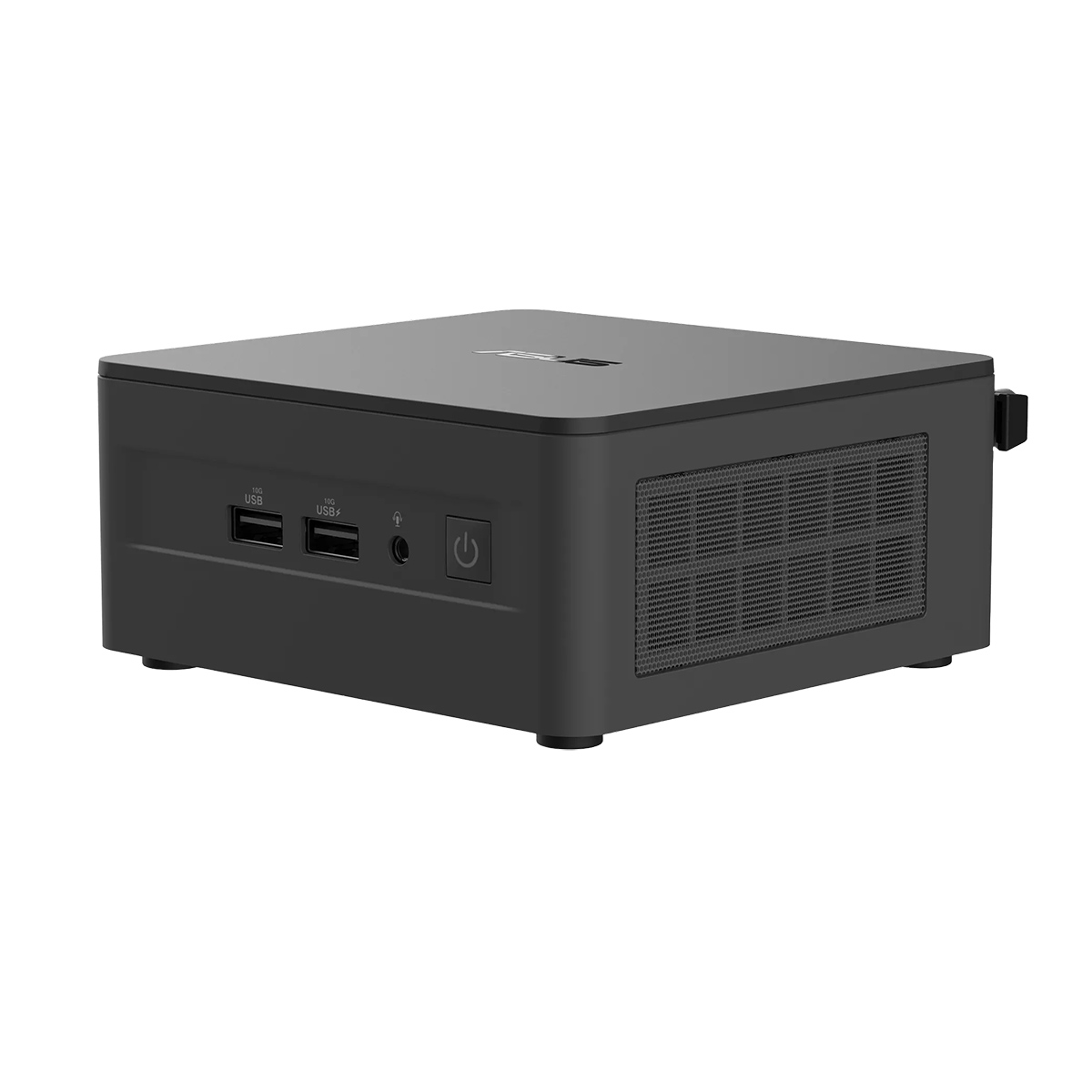

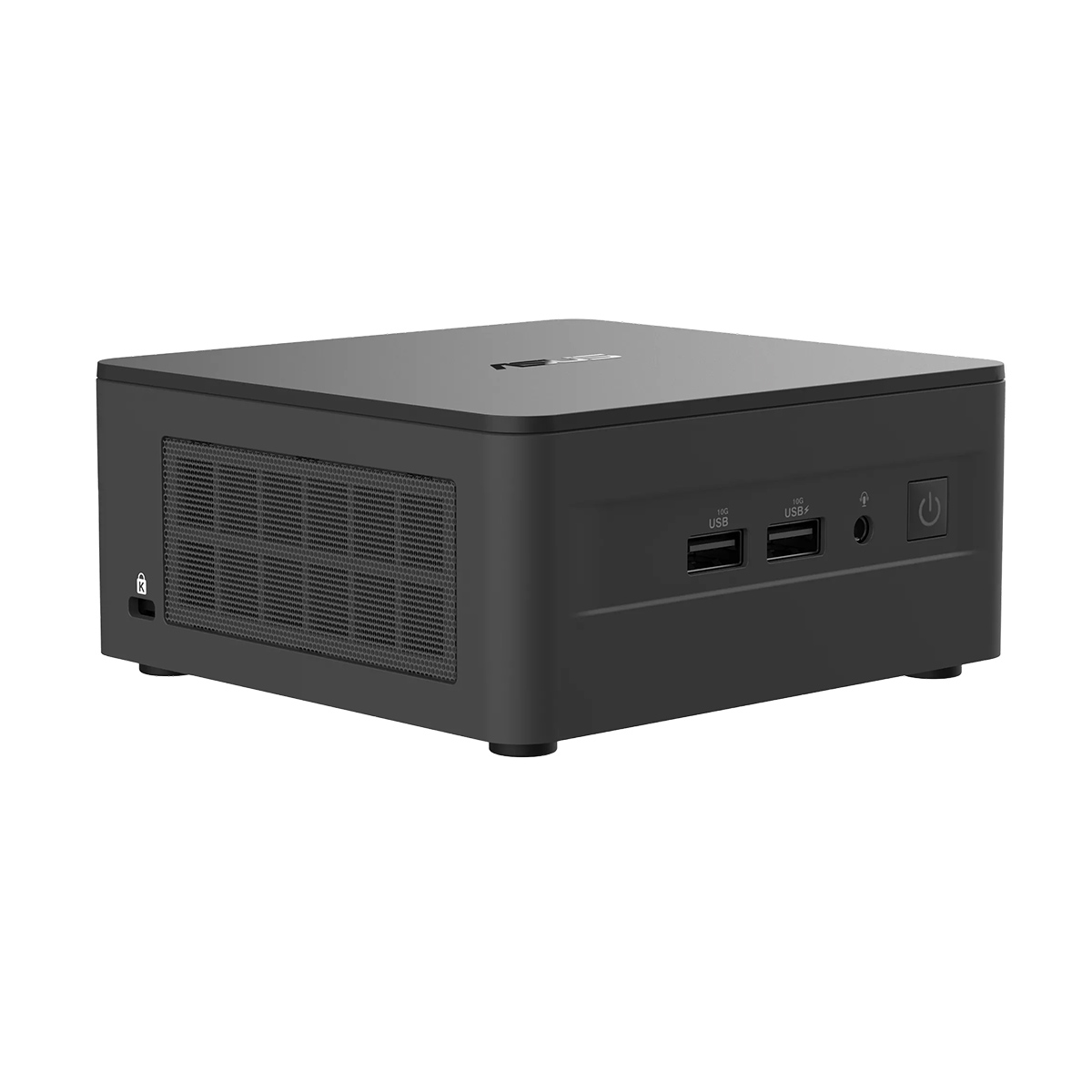

| Front(Side) I/O Ports: |
- 1 x USB 3.2 Gen2 Type-A (with BC1.2, 5V/0.9A, 10Gbps)
- 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
- 1 x Audio Jack (Line out/Mic in/Headphone out)

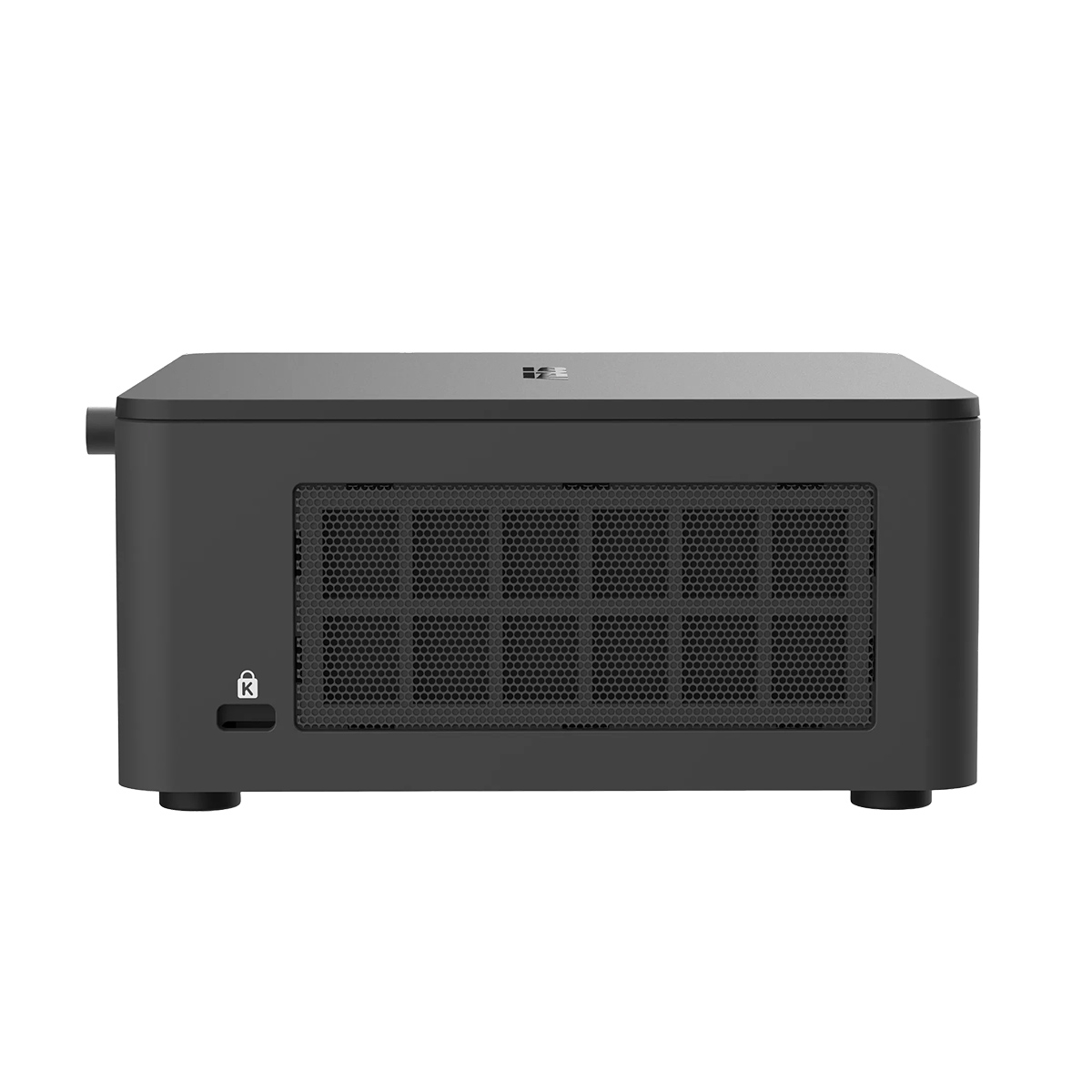

- 1 x Kensington Lock slot (Side I/O)
|

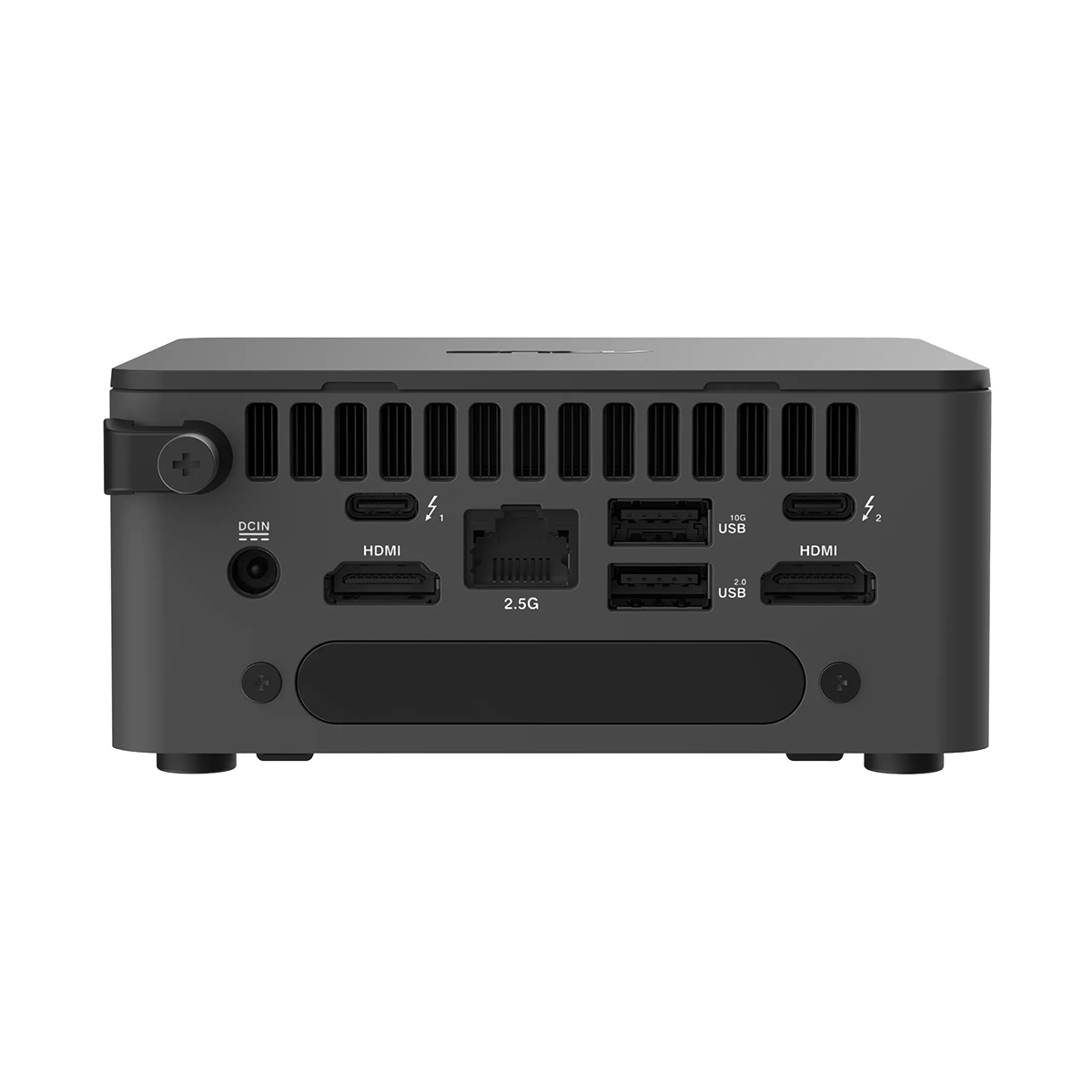

| Back I/O Ports: |
- 2 x Thunderbolt™ 4 (5V/3A, 40Gbps)
- 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
- 1 x USB 2.0 (5V/0.5A)
- 2 x HDMI 2.1 (Up to 4K@60Hz)
- 1 x 2.5G RJ45 LAN
- 1 x DC-in
|
| Power Supply: |
- 120W Power Adapter (i5/i7)
- 90W Power Adapter (i3)
|
| Operating System: |
- Without OS
- Support for Windows 11*
- Compatible with various Linux distributions
|
| Size: |
- Tall Chassis: 117 x 112 x 54 mm (0.7L)
- Slim Chassis: 117 x 112 x 37 mm (0.48L)
|
| Weight: |
- Tall Chassis: 750g (barebone)
- Slim Chassis: 510g (barebone)
|
| Color: |
Black |
| Warranty: |
3 years |
| Box in cluded: |
- Asus NUC 12 Pro
- AC Adapter + Power Cord
- Collateral Flyer
- VESA Mount
- Warranty Card
|
